Product Summary
The M30622MC-737FP is a single-chip microcomputer is built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and is packaged in a 100-pin plastic molded QFP. The M30622MC-737FP operates using sophisticated instructions featuring a high level of instruction efficiency. Applications of the M30622MC-737FP include: Audio, cameras, office equipment, communications equipment, portable equipment.
Parametrics
M30622MC-737FP aboslute maximum ratings: (1) Supply voltage Vcc: -0.3 to 6.5V (Vcc=AVcc) ; (2) Input voltage VI: -0.3 to Vcc +3V; (3) Output voltage Vo: -0.3 to Vcc +0.3V; (4) Power dissipation Pd: 300mW (Ta=25 ℃) ; (5) Operating ambient temperature Topr: -20 to 85 ℃/ -40 to 85 ℃ : (6) Storage temperature Tstg: -65 to 150 ℃.
Features
M30622MC-737FP features: (1) Memory capacity: RAM 3K to 20K bytes; (2) Shortest instruction execution time: 62.5ns (f(X IN)=16MH Z , VCC=5V) ; (3) Low power consumption: 25.5mW; (4) Multifunction 16-bit timer: 5 output timers + 6 input timers; (6) Memory expansion: Available (to 1.2M bytes or 4M bytes) ; (7) Chip select output: 4 lines; (8) Clock generating circuit: 2 built-in clock generation circuits (built-in feedback resistor, and external ceramic or quartz oscillator) .

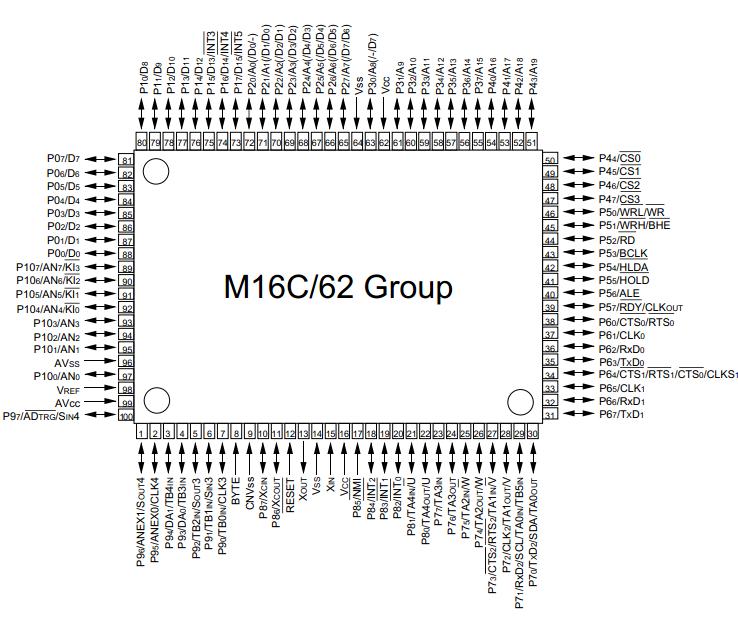

Diagrams
