Product Summary
The M24C02WMN6TP is an I2C-compatible electrically erasable programmable memory (EEPROM) device. It is organized as 2048/1024/512/256/128 x 8 (M24C16, M24C08, M24C04, M24C02 and M24C01). In order to meet environmental requirements, ST offers the M24C02WMN6TP in ECOPACK packages. ECOPACK packages are Lead-free and RoHS compliant.
Parametrics
M24C02WMN6TP absolute maximum ratings: (1)Ambient operating temperature–40 to 130 °C; (2)Storage temperature –65 to 150 °C; (3)Lead temperature during soldering: see note (1)°C; (4)PDIP-specific lead temperature during soldering: 260 °C; (5)Input or output range: –0.50 to 6.5 V; (6)Supply voltage: –0.50 to 6.5 V; (7)Electrostatic discharge voltage (human body model)(3): -4000 to 4000 V.
Features
M24C02WMN6TP features: (1)Two-wire I²C serial interface Supports 400 kHz protocol; (2)Single supply voltage: 2.5 V to 5.5 V for M24Cxx-W; 1.8 V to 5.5 V for M24Cxx-R; 1.7 V to 5.5 V for M24Cxx-F; (3)Write Control input; (4)Byte and Page Write (up to 16 bytes); (5)Random and Sequential Read modes; (6)Self-timed programming cycle; (7)Automatic address incrementing; (8)Enhanced ESD/latch-up protection; (9)More than 1 million write cycles; (10)More than 40-year data retention; (11)Packages: ECOPACK (RoHS compliant).

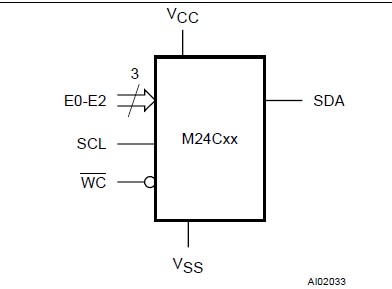

Diagrams
