Product Summary

The LTC1435ACS is a synchronous step-down switching regulator controller that drives external N-channel power MOSFETs using a fixed frequency architecture. The operating current level of LTC1435ACS is user-programmable via an external current sense resistor. Wide input supply range allows operation from 3.5V to 30V (36V maximum). Applications of the LTC1435ACS include: Notebook and Palmtop Computers, PDAs; Cellular Telephones and Wireless Modems; Portable Instruments; Battery-Operated Devices; DC Power Distribution Systems.

Parametrics

LTC1435ACS absolute maximum ratings: (1) Input Supply Voltage (VIN): 36V to –0.3V; (2) Topside Driver Supply Voltage: 42V to –0.3V; (3) Switch Voltage : VIN + 5V to –5V; (4) EXTVCC Voltage: 10V to –0.3V; (5) SENSE +, SENSE– Voltages: INTVCC +0.3V to –0.3V; (6) ITH, VOSENSE Voltages: 2.7V to –0.3V; (7) SFB, Run/SS Voltages: 10V to – 0.3V; (8) Peak Driver Output Current < 10ms (TG, BG) : 2A; (9) INTVCC Output Current : 50mA; (10) Junction Temperature: 125°C; (11) Storage Temperature Range: –65°C to 150°C; (12) Lead Temperature (Soldering, 10 sec) : 300°C.

Features

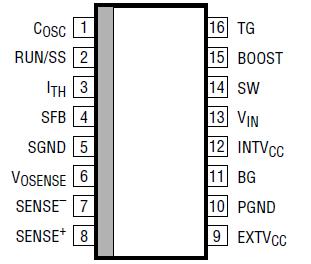

LTC1435ACS features: (1) Dual N-Channel MOSFET Synchronous Drive; (2) Programmable Fixed Frequency; (3) Wide VIN Range: 3.5V to 36V Operation; (4) Low Minimum On-Time (￡300ns) for High Frequency, Low Duty Cycle Applications; (5) Very Low Dropout Operation: 99% Duty Cycle; (6) Low Standby Current; (7) Secondary Feedback Control; (8) Programmable Soft Start; (9) Remote Output Voltage Sense; (10) Logic Controlled Micropower Shutdown: IQ < 25mA; (11) Output Voltages from 1.19V to 9V; (12) Available in 16-Lead Narrow SO and SSOP Packages.
