LMX2330ATMX

LMX2330ATMX, frequency synthesizer, 6.5 V, 1 μA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.50~3.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1030 :	3.50 / Piece

PartNumber:: LMX2330ATMX

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 98+

Availability:: Supply Ability: 410/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-10

From Other Seller

Part Number:LMX2330ATMX
US $3.50 - 3.50
Quantity:

piece

Product Summary

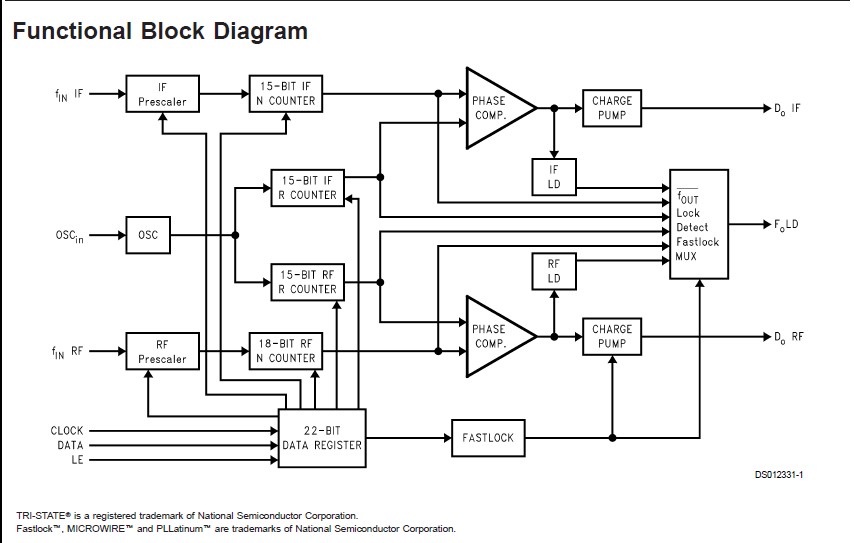

The LMX2330ATMX is a monolithic, integrated dual frequency synthesizer, including prescaler, is to be used as a local oscillator for RF and first IF of a dual conversion transceiver. It is fabricated using National ABiC IV silicon BiCMOS process. Applications are (1)Portable Wireless Communications (PCS/PCN, cordless); (2)Cordless and cellular telephone systems; (3)Wireless Local Area Networks (WLANs); (4)Cable TV tuners (CATV); (5)Other wireless communicatiosystems.

Parametrics

LMX2330ATMX absolute maximum ratings: (1)Power Supply Voltage VCC: -0.3V to +6.5V; (2)Power Supply Voltage VP: -0.3V to +6.5V; (3)Voltage on Any Pin with GND = 0V (VI): -0.3V to VCC+0.3V; (4)Storage Temperature Range (TS): -65°C to +150°C; (5)Lead Temperature (solder 4 sec.)(TL): +260°C.

Features

LMX2330ATMX features: (1)2.7V to 5.5V operation; (2)Low current consumption; (3)Selectable powerdowmode: ICC = 1 μA typical at 3V; (4)Dual modulus prescaler: LMX2330A (RF)32/33 or 64/65; LMX2331A/32A (RF)64/65 or 128/129; LMX2330A/31A/32A (IF)8/9 or 16/17; (5)Selectable charge pump TRI-STATE mode; (6)Selectable FastLock mode; (7)Small outline, plastic, surface mount TSSOP 0.173" wide package.
