Product Summary
The lm4881mmx(z81) is a dual audio power amplifier capable of delivering 200 mW of continuous average power into an 8W load with 0.1% (THD) from a 5V power supply. Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components using surface mount packaging. Since the lm4881mmx(z81) does not require bootstrap capacitors or snubber networks, it is optimally suited for low-power portable systems. Applications are (1)Headphone Amplifier; (2)Personal Computers; (3)Microphone Preamplifier.
Parametrics
lm4881mmx(z81) absolute maximum ratings: (1)Supply Voltage: 6.0V; (2)Storage Temperature: −65°C to +150°C; (3)Input Voltage: −0.3V to VDD + 0.3V; (4)Power Dissipation (Note 4): Internally limited; (5)ESD Susceptibility (Note 5): 3500V; (6)ESD Susceptibility (Note 6): 250V; (7)Junction Temperature: 150°C; (8)Soldering Information (Note 1)Small Outline Package Vapor Phase (60 seconds): 215°C; (9)Soldering Information (Note 1)Infrared (15 seconds): 220°C; (10)Thermal Resistance qJC (MSOP): 56°C/W; (11)Thermal Resistance qJA (MSOP): 210°C/W; (12)Thermal Resistance qJC (SOP): 35°C/W; (13)Thermal Resistance qJA (SOP): 170°C/W; (14)Thermal Resistance qJC (DIP): 37°C/W; (15)Thermal Resistance qJA (DIP): 107°C/W; (16)Temperature Range TMIN £ TA £ TMAX: −40°C ≤ T A ≤ 85°C; (17)Supply Voltage: 2.7V ≤ VDD ≤ 5.5V.
Features
lm4881mmx(z81) features: (1)MSOP surface mount packaging; (2)Unity-gaistable; (3)External gaiconfiguratiocapability; (4)Thermal shutdowprotectiocircuitry; (5)No bootstrap capacitors, or snubber circuits are necessary.

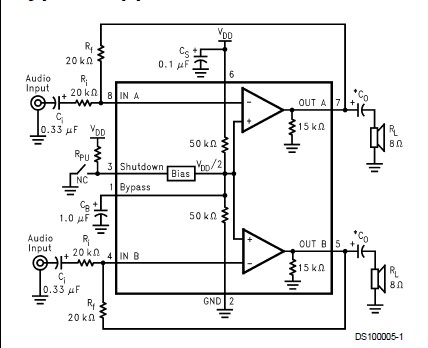

Diagrams
