Product Summary

The lm393drg4 is a dual differential comparator. The lm393drg4 consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. The outputs of the lm393drg4 can be connected to other open-collector outputs to achieve wired-AND relationships.

Parametrics

lm393drg4 absolute maximum ratings: (1) Supply voltage, VCC: 36V; (2) Differential input voltage, VID: ±36V; (3) Input voltage range, VI (either input) : -0.3 to 36V; (4) Output voltage, VO: 36V; (5) Output current, IO: 20mA; (6) Duration of output short-circuit to ground: Unlimited; (7) Operating virtual junction temperature, TJ: 150°C; (8) Storage temperature range, Tstg: -65 to +150°C.

Features

lm393drg4 features: (1) Single Supply or Dual Supplies; (2) Wide Range of Supply Voltage; (3) Low Supply-Current Drain Independent of Supply Voltage: 0.4 mA Typ Per Comparator; (4) Low Input Bias Current: 25 nA Typ; (5) Low Input Offset Voltage: 2 mV Typ; (6) Common-Mode Input Voltage Range Includes Ground; (7) Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36V; (8) Low Output Saturation Voltage; (9) Output Compatible With TTL, MOS, and CMOS.

Diagrams

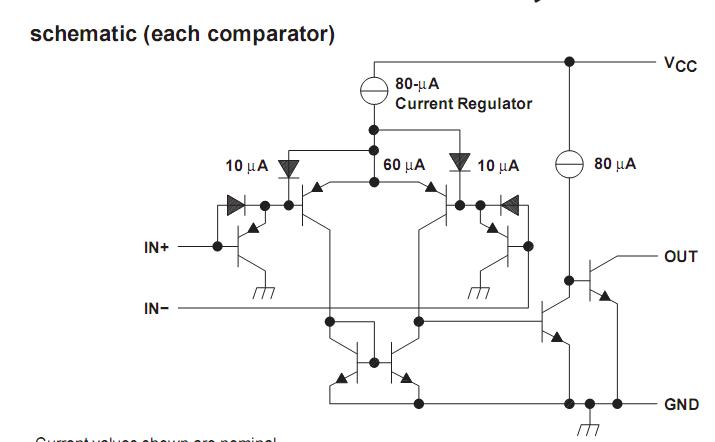

lm393drg4 Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM393DRG4
LM393DRG4
Texas Instruments
Comparator ICs Dual Differential Comparator
Data Sheet
0-1: $0.22
1-25: $0.18
25-100: $0.13
100-250: $0.09
