LM393DR

dual differential comparator, 36V, 20mA, BGA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.06~0.06 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 3000 :	0.06 / Piece

PartNumber:: LM393DR

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 09+

Availability:: Supply Ability: 3000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-15

From Other Seller

Part Number:LM393DR
US $0.06 - 0.06
Quantity:

piece

Product Summary

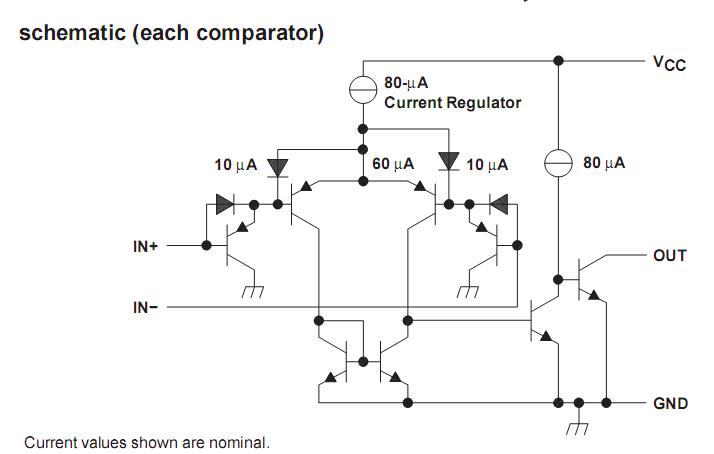

The lm393dr is a dual differential comparator. The lm393dr consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. The lm393dr is characterized for operation from -55 to +125°C.

Parametrics

lm393dr absolute maximum ratings: (1) Supply voltage, VCC: 36V; (2) Differential input voltage, VID: ±36V; (3) Input voltage range, VI (either input) : -0.3 to 36V; (4) Output voltage, VO: 36V; (5) Output current, IO: 20mA; (6) Duration of output short-circuit to ground: Unlimited; (7) Operating virtual junction temperature, TJ: 150°C; (8) Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: JG package: 300°C; (9) Storage temperature range, Tstg: -65 to +150°C.

Features

lm393dr features: (1) Single Supply or Dual Supplies; (2) Wide Range of Supply Voltage; (3) Low Supply-Current Drain Independent of Supply Voltage: 0.4 mA Typ Per Comparator; (4) Low Input Bias Current: 25 nA Typ; (5) Low Input Offset Voltage: 2 mV Typ; (6) Common-Mode Input Voltage Range Includes Ground; (7) Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36V; (8) Low Output Saturation Voltage; (9) Output Compatible With TTL, MOS, and CMOS.
