Product Summary

The lm358adr is a dual low power operational amplifier. Utilizing the circuit designs perfected for recently introduced Quad Operational Amplifiers, the lm358adr features include low power drain, a common mode input voltage range extending to ground/VEE, single supply or split supply operation and pinouts compatible with the popular MC1558 dual operational amplifier.

Parametrics

lm358adr absolute maximum ratings: (1)Power supply voltages single supply, VCC: 32V; (2)Split supplies, VCC, VEE: ±16V; (3)Input differential voltage range, VIDR: ±32V; (4)Input common mode voltage range, VICR: –0.3 to 32V; (5)Output short circuit duration, tSC: continuous; (6)Junction temperature, TJ: 150℃; (7)Storage temperature range, Tstg: –55 to +125 ℃; (8)Operating ambient temperature range, TA: 0 to +70℃.

Features

lm358adr features: (1)Short circuit protected outputs; (2)True differential input stage; (3)Single supply operation: 3.0 V to 32 V; (4)Low input bias currents; (5)Internally compensated; (6)Common mode range extends to negative supply; (7)Single and split supply operation; (8)Similar performance to the popular MC1558; (9)ESD clamps on the inputs increase ruggedness of the device without affecting operation.

Diagrams

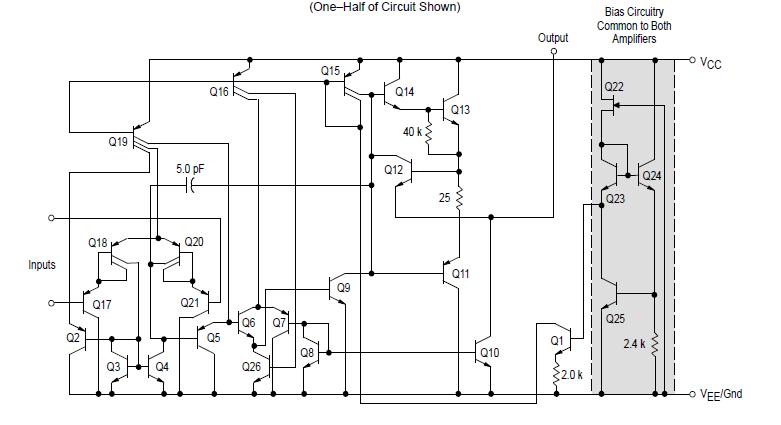

lm358adr circuit diagram
