Product Summary
The lm34902itmx is a 0.3A PFET switch used to control the input voltage of electronic devices. It is easily integrated into system designs that have a 2.8V to 5.3V voltage rail. Besides the 0.45Ω PFET switch, the lm34902itmx can be enabled or disabled by a logic signal. The IC monitors the presence of a downstream electronic device via a dedicated pin to decide whether to turn on the PFET switch. A power good signal generated by the IC can be used by system control to determine the status of the switch. The lm34902itmx also provides over-current and over-temperature protection. The IC comes in a tiny 6-bump Thin DSBGA package. The applications of the device are (1)Handsets, Tablets, Notebooks; (2)Portable devices.
Parametrics
lm34902itmx absolute maximum ratings: (1)VCC -0.3V to 6V; (2)ENABLE, POK, ACC_DET,ACC_PWR: -0.3V to 6V; (3)Junction Temperature (TJ) +150°C; (4)Storage Temperature Range -65°C to +150°C; (5)ESD Susceptibility, Human Body Model: 2kV.
Features
lm34902itmx features: (1)Input Voltage of 2.8V to 5.3V; (2)0.3A Maximum Switch Current; (3)0.64Ω Typical Total On-Resistance; (4)Load Detection; (5)Enable/Disable; (6)Switch On Indicator; (7)Peak Current Limit; (8)Thermal Shutdown; (9)6-Bump Thin DSBGA Package.

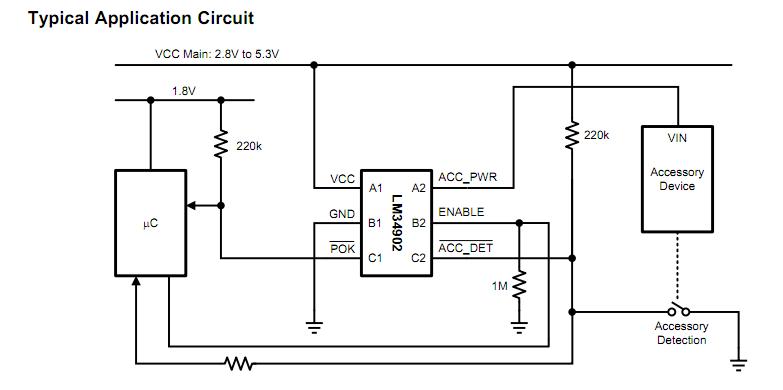

Diagrams
