Product Summary
The l2722 is a monolithic integrated circuits in Powerdip, Minidip and SO packages intended for use aspower operational amplifiers in a wide range of applications including servo amplifiers and power supplies, compacts disc, VCR, etc. The high gain and high output power capability of the l2722 provide superior performance whatever an operational amplifier/power booster combination is required.
Parametrics
l2722 absolute maximum ratings: (1)Supply Voltage: 28V; (2)DC Output Current: 1A; (3)Peak Output Current (non repetitive): 1.5A; (4)PtotPower Dissipation at: 1.2W/5W; (5)Operating Temperature Range (L272D):–40 to 85℃; (6)Storage and Junction Temperature: -40 to 150℃.
Features
l2722 features: (1)output current to 1A; (2)operates at low voltage; (3)single or split supply; (4)large common-mode and differential mode range; (5)ground compatible inputs; (6)low saturation voltage; (7)thermal shutdown.

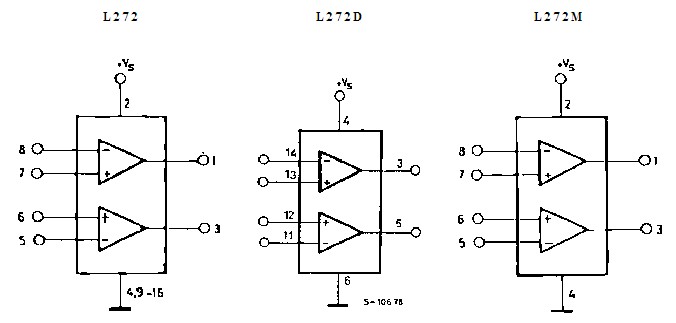

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 L2722 |
STMicroelectronics |
Operational Amplifiers - Op Amps Dual Hi-Gain Hi-Out |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
L272 |
STMicroelectronics |
Operational Amplifiers - Op Amps Dual Hi-Gain Hi-Out |
Data Sheet |
Negotiable |
|
||||||||||||
|
L2720 |
STMicroelectronics |
Operational Amplifiers - Op Amps Dual Hi-Gain Hi-Out |
Data Sheet |
Negotiable |
|
||||||||||||
|
L2720D |
STMicroelectronics |
Operational Amplifiers - Op Amps Dual Hi-Gain Hi-Out |
Data Sheet |
Negotiable |
|
||||||||||||
|
L2720W13TR |
STMicroelectronics |
Operational Amplifiers - Op Amps Low Drop Dual 1A Op Amp SO16 |
Data Sheet |
|
|
||||||||||||
 |
L2721 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
L2722 |
STMicroelectronics |
Operational Amplifiers - Op Amps Dual Hi-Gain Hi-Out |
Data Sheet |
|
|
||||||||||||
