Product Summary
The K4R271669A-5CK8 is a general purpose highperformance memory device suitable for use in a broad range of applications including computer memory, graphics, video, and any other application where high bandwidth and low latency are required.
Parametrics
K4R271669A-5CK8 absolute maximum ratings: (1)Voltage applied to any RSL or CMOS pin with respect to Gnd: - 0.3 to VDD+0.3 V; (2)Voltage on VDD and VDDA with respect to Gnd: - 0.5 to VDD+1.0 V; (3)Storage temperature: - 50 to 100 °C.
Features
K4R271669A-5CK8 features: (1)1.6GB/s sustained data transfer rate; (2)Separate control and data buses for maximized efficiency; (3)Separate row and column control buses for easy scheduling and highest performance; (4)32 banks: four transactions can take place simultaneously at full bandwidth data rates; (5)Write buffer to reduce read latency; (6)3 precharge mechanisms for controller flexibility; (7)Interleaved transactions.

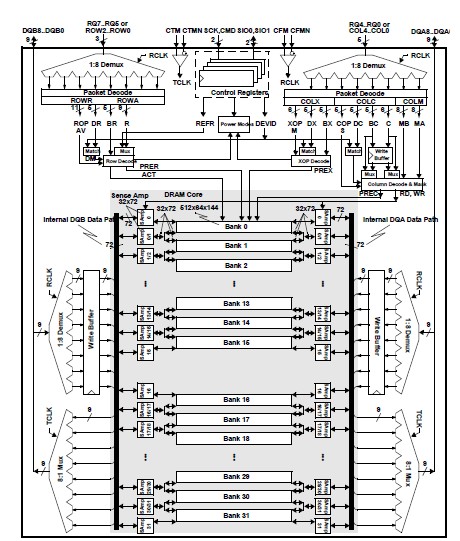

Diagrams
