Product Summary
The ISP815(PC815) is a high density mounting photodarlington optically coupled isolators. The ISP815(PC815) of optically coupled isolators consist of infrared light emitting diodes and NPN silicon photodarlingtons in space efficient dual in line plastic packages. Applications are (1)Computer terminals; (2)Industrial systems controllers; (3)Measuring instruments; (4)Signal transmission between systems of different potentials and impedances.
Parametrics
ISP815(PC815) absolute maximum ratings: (1)Storage Temperature: -55°C to + 125°C; (2)Operating Temperature: -55°C to + 100°C; (3)Lead Soldering Temperature (1/16 inch (1.6mm)from case for 10 secs): 260°C; (4)Forward Current: 50mA; (5)Reverse Voltage: 6V; (6)Power Dissipation: 70mW; (7)Collector-emitter Voltage BVCEO: 35V; (8)Emitter-collector Voltage BVECO: 6V; (9)Power Dissipation: 150mW; (10)Total Power Dissipation: 200mW (derate linearly 2.67mW/°C above 25°C).
Features
ISP815(PC815) features: (1)Options: 10mm lead spread - add G after part no; Surface mount - add SM after part no; Tape&ree- add SMT&R after part no; (2)High Current Transfer Ratio (600%min); (3)High Isolation Voltage (5.3kVRMS ,7.5kVPK ); (4)Alelectricaparameters 100% tested; (5)Custom electricaselections available.

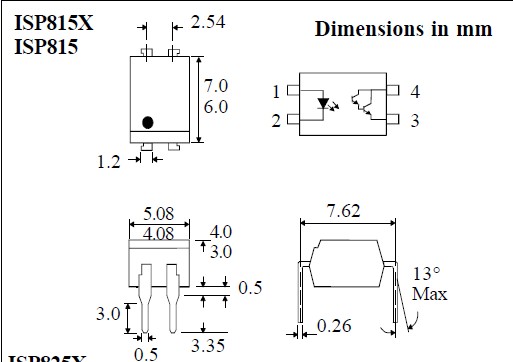

Diagrams
