ISL84514IHZ-T

isl84514ihz-t, analog switch, 15V, 30mA, 10Ω, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.33~0.33 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 568 :	0.33 / Piece

PartNumber:: ISL84514IHZ-T

Brand:: Elantec Semiconductor - Intersil | Pack: | D/C: 10+

Availability:: Supply Ability: 568/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-11

From Other Seller

Part Number:ISL84514IHZ-T
US $0.33 - 0.33
Quantity:

piece

Product Summary

The isl84514ihz-t is a precision, analog switch designed to operate from a single +2.4V to +12V supply. Targeted applications include battery powered equipment that benefit from the devices low power consumption (5μW), and low leakage currents (1nA). Low RON and fast switching speeds over a wide operating supply range make the isl84514ihz-t ideal for use in industrial equipment, portable instruments, and as input signal multiplexers for new generation, low supply voltage data converters. Applications are (1)Battery Powered, Handheld, and Portable Equipment; (2)Communications Systems: Radios, Telecom Infrustructure; (3)Test Equipment: Logic and Spectrum Analyzers, Portable Meters; (4)Medical Equipment: Ultrasound and MRI, Electrocardiograph; (5)Audio and Video Switching; (6)+3V/+5V DACs and ADCs; (7)Sample and Hold Circuits; (8)Digital Filters; (9)Operational Amplifier Gain Switching Networks; (10)High Frequency Analog Switching; (11)High Speed Multiplexing; (12)Integrator Reset Circuits.

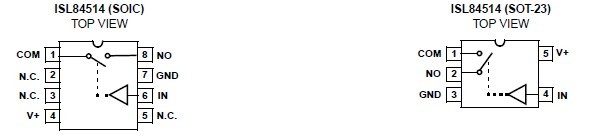

Parametrics

isl84514ihz-t absolute maximum ratings: (1)V+ to GND: -0.3 to 15V; (2)Input Voltages IN (Note 2): -0.3 to ((V+)+ 0.3V), NO, NC (Note 2): -0.3 to ((V+)+ 0.3V); (3)Output Voltages COM (Note 2): -0.3 to ((V+)+ 0.3V)Continuous Current (Any Terminal): 20mA; (4)Peak Current NO, NC, or COM (Pulsed 1ms, 10% Duty Cycle, Max): 30mA; (5)ESD Rating (Per MIL-STD-883 Method 3015) . >2kV; (6)Maximum Storage Temperature Range: -65°C to 150°C; (7)Maximum Lead Temperature (Soldering 10s): 300°C.

Features

isl84514ihz-t features: (1)Drop-in Replacements for MAX4514 and MAX4515; (2)Available in SOT-23 Packaging; (3)Fully Specified for 5V and 12V Supplies; (4)Single Supply Operation: +2.4V to +12V; (5)ON Resistance (RON Max): 20Ω (V+ = 5V), 10Ω (V+ = 12V); (6)RON Flatness (Max): 3Ω; (7)Charge Injection (Max): 10pC; (8)Low Power Consumption (PD): <5μW; (9)Low Leakage Current (Max at 85oC): 20nA (Off Leakage)40nA (On Leakage); (10)Minimum 2000V ESD Protection per Method 3015.7; (11)TTL, CMOS Compatible; (12)Pb-free available.
