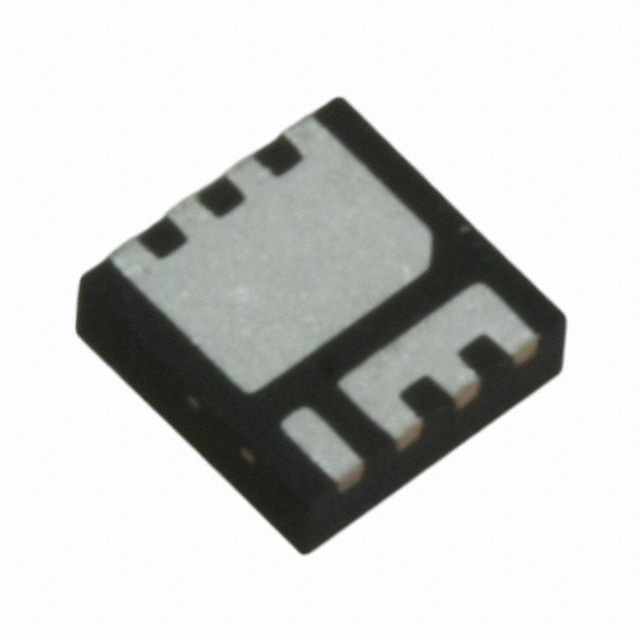

IRFH7923TRPBF

Power MOSFET, 30V, 1.9W, 120A, irfh7923trpbf, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 4000 :	0.20 / Piece

PartNumber:: IRFH7923TRPBF

Brand:: International Rectifier - IR | Pack: | D/C: 08+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-03

From Other Seller

Part Number:IRFH7923TRPBF
US $0.20 - 0.20
Quantity:

piece

Product Summary

The irfh7923trpbf is a Power MOSFET. The applications of the device are (1)High Frequency Point-of-Load Synchronous Buck Converter for Applications in Neworking & Computing Systems; (2)Optimized for Control FET Applications.

Parametrics

irfh7923trpbf absolute maximum ratings: (1)VDS Drain-to-Source Voltage 30V; (2)VGS Gate-to-Source Voltage±20V; (3)ID @ TA = 25°C Continuous Drain Current, VGS @ 10V: 15A; (4)ID @ TA = 70°C Continuous Drain Current, VGS @ 10V: 12A; (5)ID @ TC = 25°C Continuous Drain Current, VGS @ 10V: 33 A; (6)IDM Pulsed Drain Current: 120A ; (7)PD @TA = 25°C Power Dissipation: 3.0W; (8)PD @TA = 70°C Power Dissipation: 1.9W.

Features

irfh7923trpbf features: (1)Very low RDS(ON) at 4.5V VGS; (2)Low Gate Charge; (3)Fully Characterized Avalanche Voltage and Current; (4)100% Tested for RG; (5)Lead-Free (Qualified up to 260°C Reflow); (6)RoHS compliant (Halogen Free); (7)Low Thermal Resistance; (8)Large Source Lead for more reliable Soldering.
