Product Summary
The il217a is a small outline surface mount optocoupler. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. The il217a comes in a standard SOIC-8 small outline package for surface mounting which makes the il217a ideally suited for high density applications with limited space. In addition to eliminating throughholes requirements, this package conforms to standards for surface mounted devices.
Parametrics
il217a absolute maximum ratings: (1)Peak Reverse Voltage: 6.0 V; (2)Continuous Forward Current: 60 mA; (3)Power Dissipation at 25℃: 90 mW; (4)Derate Linearly from 25℃: 1.2 mW/℃; (5)Total Package Dissipation at 25℃ Ambient(LED + Detector): 280 mW; (6)Derate Linearly from 25℃: 3.3 mW/℃; (7)Storage Temperature: –55℃ to +150℃; (8)Operating Temperature: –55℃ to +100℃; (9)Soldering Time at 260℃: 10 sec.
Features
il217a features: (1)High Current Transfer Ratio, IF=1 mA 100% Minimum; (2)Isolation Voltage, 2500 VACRMS; (3)Electrical Specifications Similar to Standard 6 Pin Coupler; (4)Industry Standard SOIC-8 Surface Mountable Package; (5)Standard Lead Spacing, .05”; (6)Available in Tape and Reel (suffix T)(Conforms to EIA Standard RS481A); (7)Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering; (8)Underwriters Lab File #E52744(Code Letter P).

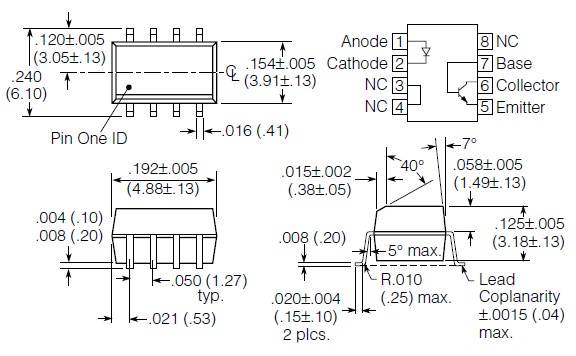

Diagrams
