Product Summary
The ICS501MT is a LOCO PLL clock multiplier. The ICS501MT is the most cost effective way to generate a high-quality, high-frequency clock output from a lower frequency crystal or clock input. The name LOCO stands for Low Cost Oscillator, as it is designed to replace crystal oscillators in most electronic systems. Using Phase-Locked Loop (PLL) techniques, the ICS501MT uses a standard fundamental mode, inexpensive crystal to produce output clocks up to 160MHz.
Parametrics
ICS501MT absolute maximum ratings: (1)VCC, VIN,VOUT, Power Supply Input/Output Voltage: -0.5 to 7.0 V; (2)TA, Operating Temperature: -40 to 85℃; (3)TSTG, Storage Temperature: -65 to 150℃; (4)PD, Power Dissipation: 1.0 W; (5)IOUT, Data OutPut Current: 50 mA; (6)TSOLDER, Lead Soldering Temperature & Time: 260 /10℃/ sec.
Features
ICS501MT features: (1)Packaged as 8-pin SOIC or die; (2)Available in Pb (lead) free package; (3)ICS’lowest cost PLL clock; (4)Zero ppm multiplication error; (5)Input crystal frequency of 5 - 27 MHz; (6)Input clock frequency of 2 - 50 MHz; (7)Output clock frequencies up to 160 MHz; (8)Extremely low jitter of 25 ps (one sigma); (9)Compatible with all popular CPUs; (10)Duty cycle of 45/55 up to 160 MHz; (11)Nine selectable frequencies; (12)Operating voltage of 3.3V or 5.5V; (13)Tri-state output for board level testing; (14)25mA drive capability at TTL levels; (15)Ideal for oscillator replacement; (16)Industrial temperature version available; (17)Advanced, low-power CMOS process.

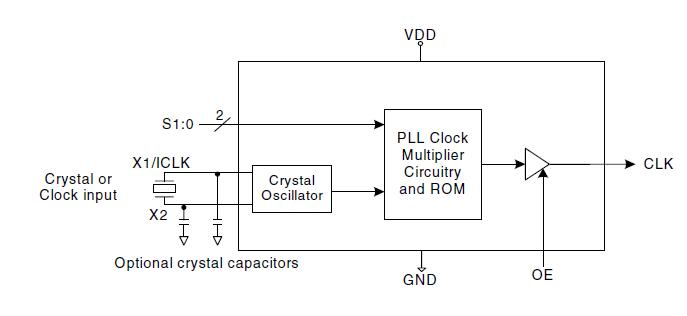

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ICS501MT |
|
IC PLL CLK MULTIPLIER 8-SOIC |
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
ICS501 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
ICS501A |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
ICS501AM |
|
IC PLL CLK MULTIPLIER 8-SOIC |
Data Sheet |
Negotiable |
|
||||||
|
ICS501AMI |
|
IC PLL CLK MULTIPLIER 8-SOIC |
Data Sheet |
Negotiable |
|
||||||
|
ICS501AMILF |
|
IC PLL CLK MULTIPLIER 8-SOIC |
Data Sheet |
|
|
||||||
|
ICS501AMILFT |
|
IC PLL CLK MULTIPLIER 8-SOIC |
Data Sheet |
|
|
||||||
