Product Summary
The hsp43220jc-25 is a Decimating Digital Filter. It is a linear phase low pass decimation filter which is optimized for filtering narrow band signals in a broad spectrum of a signal processing applications. The hsp43220jc-25 offers a single chip solution to signal processing applications which have historically required several boards of ICs. This reduction in component count results in faster development times as well as reduction of hardware costs. The applications of the hsp43220jc-25 are (1)Very Narrow Band Filters; (2)Zoom Spectral Analysis; (3)Channelized Receivers; (4)Large Sample Rate Converter.
Parametrics
hsp43220jc-25 absolute maximum ratings: (1)Supply Voltage: +6.0V; (2)Input, Output or I/O Voltage Applied: GND -0.5V to VCC +0.5V; (3)ESD Classification: Class 1; (4)Temperature Range: 0°C to 70°C; (5)Voltage Range: +4.75V to +5.25V.
Features
hsp43220jc-25 features: (1)Single Chip Narrow Band Filter with up to 96dB Attenuation ; (2)DC to 33MHz Clock Rate ; (3)16-Bit 2s Complement Input ; (4)20-Bit Coefficients in FIR ; (5)24-Bit Extended Precision Output ; (6)Programmable Decimation up to a Maximum of 16,384 ; (7)Standard 16-Bit Microprocessor Interface ; (8)Filter Design Software Available DECIMATE; (9)Up to 512 Taps.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

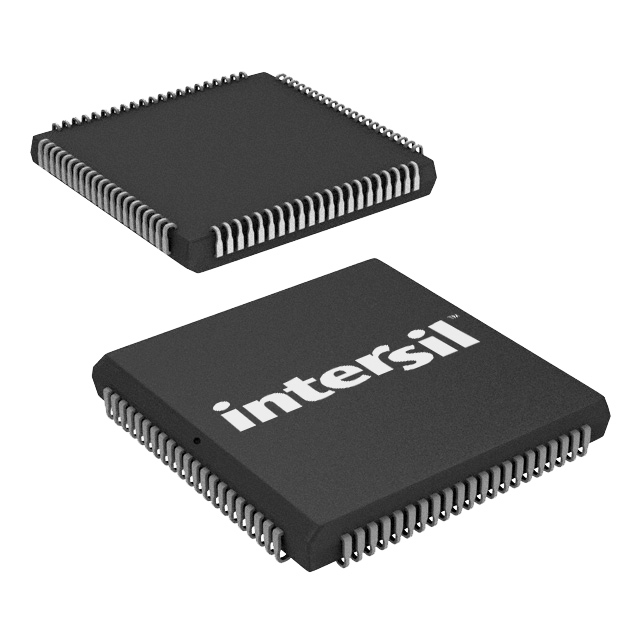

 HSP43220JC-25 |
Intersil |
IC DECIMATING DGTL FILTER 84PLCC |
Data Sheet |
Negotiable |
|
||||||
 |
HSP43220JC-25Z |
|
IC DECIMATING DGTL FILTER 84PLCC |
Data Sheet |
|
|
||||||
