Product Summary
The hm9270d is a complete DTMF receiver integrating both the bandsplit filter and digital decoder functions. The hm9270d uses switched capacitor techniques for high- and low-group filters and dial-tone rejection. Digital counting techniques are employed in the decoder to detect and decode all 16 DTMF tonepairs into a 4-bit code. External component count is minimized by on-chip provision of a differential input amplifier, clock-oscillator and latched 3-state bus interface.
Parametrics
hm9270d absolute maximum ratings: (1)Power Supply Voltage, VDD - VSS: 6 V; (2)Voltage on any pin: VSS- 0.3 VDD+ 0.3 V; (3)Current at any pin: 10 mA; (4)Operating temperature: -40 to +85 oC; (5)Storage temperature: -65 to +150 oC; (6)Package power dissipation: 500 mW.
Features
hm9270d features: (1)Complete receiver in an 18-pin package; (2)Excellent performance; (3)CMOS, single 5 volt operation; (4)Minimum board area; (5)Central office quality; (6)Low power consumption; (7)Power-Down mode.

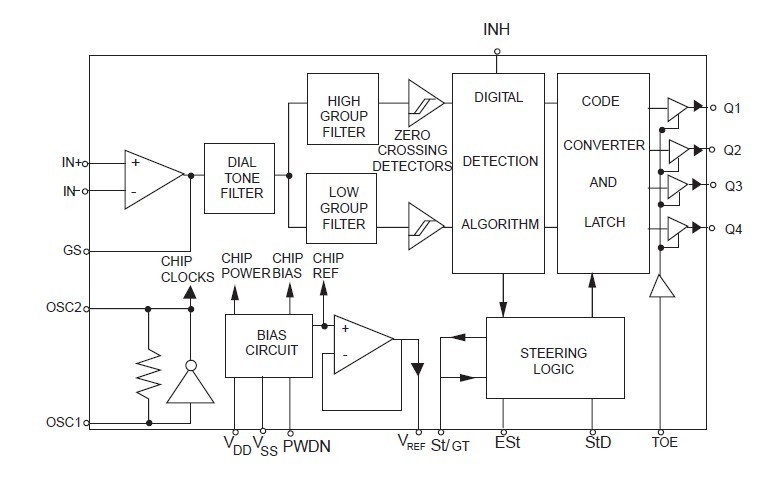

Diagrams
