Product Summary
The HIN232ACBN high-speed RS-232 transmitter/receiver interface circuit meets all ElA high-speed RS-232E and V.28 specifications,and are particularly suited for those applications where ±12V is not available. The HIN232ACBN requires a single +5V power supply and feature on board charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. Applications of the HIN232ACBN include: Any System Requiring High-Speed RS-232 Communication Ports, Computer - Portable, Mainframe, Laptop, Peripheral - Printers and Terminals, Instrumentation, UPS and Modems.
Parametrics
HIN232ACBN absolute maximum ratings: (1) Vcc to Ground: (GND -0.3V)
Features
HIN232ACBN features: (1) Meets All RS-232E and V.28 Specifications; (2) Requires Only 0.1μF or Greater External Capacitors; (3) High Data Rate: 230kbit/s; (4) Two Receivers Active in Shutdown Mode (HIN213A) ; (5) Requires Only Single +5V Power Supply; (6) Onboard Voltage Doubler/Inverter; (7) Low Power Consumption (Typ) : 5mA; (7) Low Power Shutdown Function (Typ) : 1μA; (8) Three-State TTL/CMOS Receiver Outputs.

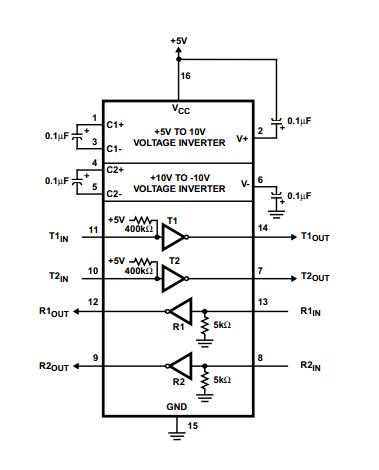

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HIN232ACBN |
|
IC TXRX RS-232 5V HS 16-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
|
HIN232ACBN-T |
|
IC 2DRVR/2RCVR RS232 5V 16-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
 |
HIN232ACBNZ-T |
Intersil |
RS-232 Interface IC RS232 5V 2D/2R COM |
Data Sheet |
|
|
||||||||||||
|
HIN232ACBNZ |
Intersil |
RS-232 Interface IC RS232 5V 2D/2R COM |
Data Sheet |
|
|
||||||||||||
