HIN208CB

HIN208CB, RS-232 transmitter/receiver interface circuit, 5 V, 1 μA, 5 mA, 0.1 μF, 120 kbit/s, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.30~1.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 200 :	1.30 / Piece

PartNumber:: HIN208CB

Brand:: Elantec Semiconductor - Intersil | Pack: SOP | D/C: 00+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-07

From Other Seller

Part Number:HIN208CB
US $1.30 - 1.30
Quantity:

piece

Product Summary

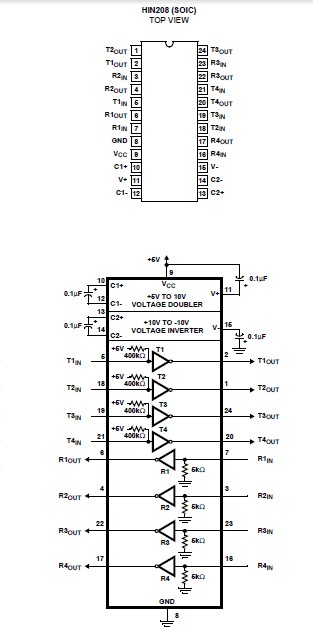

The HIN208CB is a RS-232 transmitter/receiver interface circuit. It is meet all ElA RS-232E and V.28 specifications, and are particularly suited for those applications where ±12V is not available. The HIN208CB require a single +5V power supply and feature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The family of devices offers a wide variety of RS-232 transmitter/receiver combinations to accommodate various applications (see Selection Table). Applications are (1)Computer Portable, Mainframe, Laptop; (2)Peripheral Printers and Terminals; (3)Instrumentation; (4)Modems.

Parametrics

HIN208CB absolute maximum ratings: (1)VCC to Ground: (GND -0.3V)

Features

HIN208CB features: (1)Meets All RS-232E and V.28 Specifications; (2)Requires Only 0.1μF or Greater External Capacitors; (3)High Data Rate: 120kbit/s; (4)Two Receivers Active in Shutdown Mode (HIN213); (5)Requires Only Single +5V Power Supply; (6)Onboard Voltage Doubler/Inverter; (7)Low Power Consumption (Typ): 5mA; (8)Low Power Shutdown Function (Typ): 1μA; (9)Three-State TTL/CMOS Receiver Outputs.
