Product Summary
The hd74lvc541atell has eight line driver with three state output in a 20 pin package. When G1 and G2 is low level, this driver set up output is enable. Low voltage and high-speed operation is suitable at the battery drive product (note type personal computer) and low power consumption extends the life of a battery for long time operation.
Parametrics
hd74lvc541atell absolute maximum ratings: (1)Supply voltage VCC: –0.5 to 6.0 V; (2)Input diode current IIk: –50 mA; (3)Input voltage VI: –0.5 to 6.0 V; (4)Output diode current IOK: –50mA; (5)Output voltage VO:–0.5 to VCC +0.5V; (6)Output current IO: ±50 mA; (7)VCC, GND current / pin ICC or IGND: 100 mA; (8)Storage temperature Tstg: –65 to +150 °C.
Features
hd74lvc541atell features: (1)VCC = 2.0 V to 5.5 V; (2)All inputs VIH (Max.)= 5.5 V (@VCC = 0 V to 5.5 V); (3)All outputs VOUT (Max.)= 5.5 V (@VCC = 0 V or output off state); (4)Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C); (5)Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C); (6)High output current ±24 mA (@VCC = 3.0 V to 5.5 V); (7)Ordering Information.

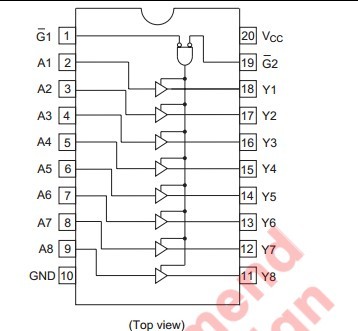

Diagrams
