The hd74hc32rpel is a Quad 2-input OR Gate.
Parametrics
hd74hc32rpel absolute maximum ratings: (1)Supply voltage range: VCC: –0.5 to 7.0 V; (2)Input / Output voltage: Vin, Vout: –0.5 to VCC +0.5 V; (3)Input / Output diode current: IIK, IOK: ±20 mA; (4)Output current: IO: ±25 mA; (5)VCC, GND current: ICC or IGND: ±50 mA; (6)Power dissipation: PT: 500 mW; (7)Storage temperature: Tstg: –65 to +150 °C.
Features
hd74hc32rpel features: (1)High Speed Operation: tpd = 10 ns typ (CL = 50 pF); (2)High Output Current: Fanout of 10 LSTTL Loads; (3)Wide Operating Voltage: VCC = 2 to 6 V; (4)Low Input Current: 1 μA max; (5)Low Quiescent Supply Current: ICC (static) = 1 μA max (Ta = 25°C) ; (6)Ordering Information.

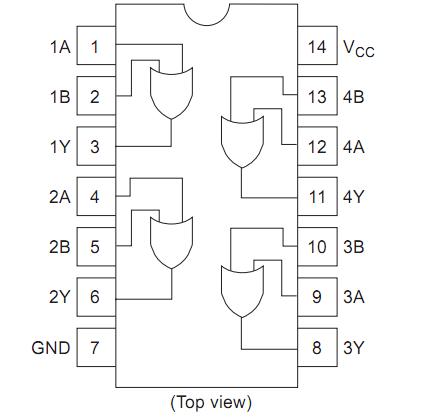

Diagrams
