HCPL-7720

HCPL-7720, optocoupler, 6.0 Volts, 10 mA, 25 MBd, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.45~2.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 648 :	2.45 / Piece

PartNumber:: HCPL-7720

Brand:: Hewlett-Packard - HP | Pack: SOP | D/C: 99+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-08

From Other Seller

Part Number:HCPL-7720
US $2.45 - 2.45
Quantity:

piece

Product Summary

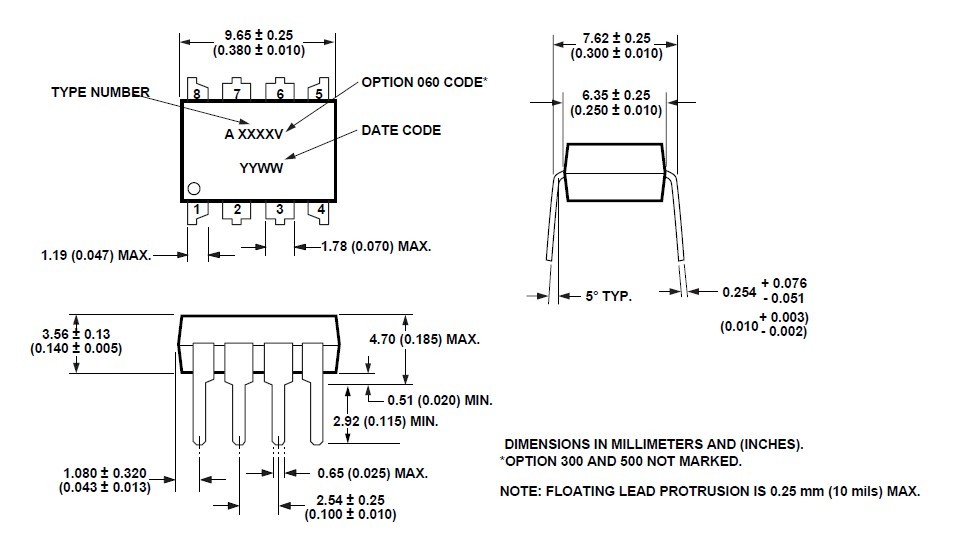

Available in either an 8-pin DIP or SO-8 package style respectively, the hcpl-7720 optocoupler utilizes the latest CMOS IC technology to achieve outstanding performance with very low power consumption. The hcpl-7720 require only two bypass capacitors for complete CMOS compatability. Basic building blocks of the hcpl-7720 is a CMOS LED driver IC, a high speed LED and a CMOS detector IC. Appilcations are (1)Digital fieldbus isolation: CC-Link, DeviceNet, Profibus, SDS; (2)AC plasma display panel level shifting; (3)Multiplexed data transmission; (4)Computer peripheral interface; (5)Microprocessor system interface.

Parametrics

hcpl-7720 absolute maximum ratings: (1)Storage Temperature TS: –55 to 125 °C; (2)Ambient Operating Temperature[1] TA: –40 to +85 °C; (3)Supply Voltages VDD1, VDD2: 0 to 6.0 Volts; (4)Input Voltage VI: –0.5 to VDD1 +0.5 Volts; (5)Output Voltage VO: –0.5 to VDD2 +0.5 Volts; (6)Average Output Current IO: 10 mA.

Features

hcpl-7720 features: (1)+5 V CMOS compatibility; (2)20 ns maximum prop. delay skew; (3)High speed: 25 MBd; (4)40 ns max. prop. delay; (5)10 kV/μs minimum common mode rejection; (6)–40 to 85°C temperature range; (7)Safety and regulatory approvals.
