Product Summary
The HA17339ARPEL-Q is a comparator.It is designed for general purpose, especially for power control systems. The HA17339ARPEL-Q ICs operate from a single power-supply voltage over a wide range of voltage, and feature a reduced powersupply current since the supply current is independent of the supply voltage. The HA17339ARPEL-Q have the merit which ground is included in the common-mode input voltage range at a singlevoltage power supply operation. The product have a wide range of applications, including limit comparators, simple A/D converter, pulse/square-wave/time delay generator, wide range VCO circuit, MOS clock timer, multivibrator, and high-voltage logic gate.
Parametrics
HA17339ARPEL-Q absolute maximum ratings: (1)Power supply voltage: 36 V; (2)Differential input voltage: ±VCC V; (3)Input voltage: -0.3 to +VCC V; (4)Output pin voltage: -0.3 to +36 V; (5)Output current: 20 mA; (6)Allowable power dissipation DIP: 625 mW; (7)Allowable power dissipation SOP: 625 mW; (8)Allowable power dissipation TSSOP: 400 mW; (9)Operating temperature: -40 to +85 °C; (10)Storage temperature: -55 to +125 °C.
Features
HA17339ARPEL-Q features: (1)Wide power-supply voltage range: 2 to 36 V; (2)Very low supply current: 0.8 mA Typ.; (3)Low input bias current: 25 nA Typ.; (4)Low input offset current: 5 nA Typ.; (5)Low input offset voltage: 2 mV Typ.; (6)The common-mode input voltage range includes ground; (7)Output voltages compatible with CMOS logic systems.

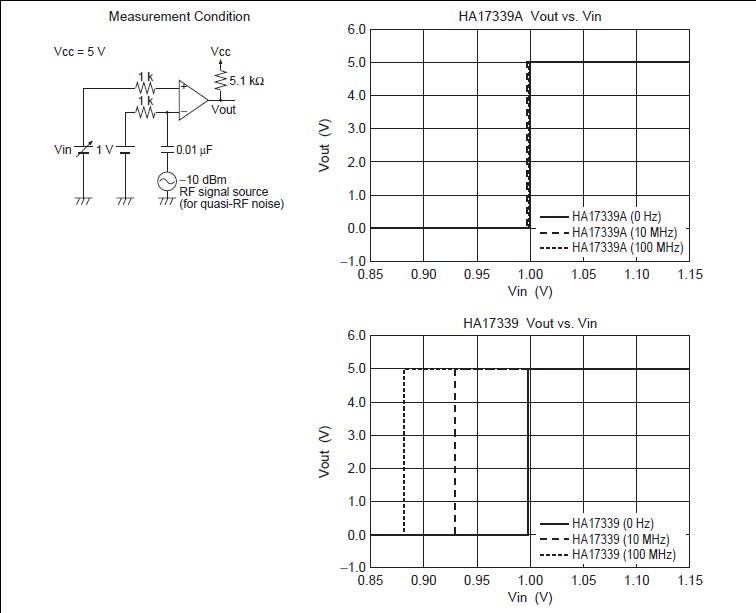

Diagrams
