Product Summary
The FSTU16862QSPX is a 20-bits highspeed CMOS TTL-compatible bus switching. The low On Resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise.
Parametrics
FSTU16862QSPX absolute maximum ratings: (1)Supply Voltage (VCC): −0.5V to +7.0V; (2)DC Switch Voltage (VS)(Note 2): −2.0V to +7.0V; (3)DC Input Voltage (VIN)(Note 3): −0.5V to +7.0V; (4)DC Input Diode Current (lIK)VIN < 0V: −50 mA; (5)DC Output Current (IOUT): 128 mA; (6)DC VCC/GND Current (ICC/IGND): ±100 mA; (7)Storage Temperature Range (TSTG): −65°C to +150 °C.
Features
FSTU16862QSPX features: (1)Undershoot hardened to −2V (A and B Ports); (2)4Ω switch connection between two ports; (3)Minimal propagation delay through the switch; (4)Low lCC; (5)Zero bounce in flow-through mode; (6)Control inputs compatible with TTL level; (7)See Application Note AN-5008 for details on FSTU - Undershoot Protected Fairchild Switch Family.

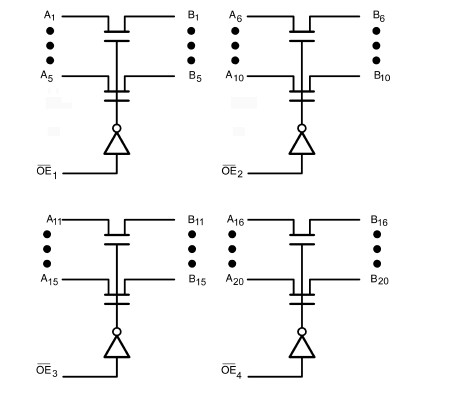

Diagrams
