Product Summary
The FS8170 IC is a serial data input, fully programmable phase-locked loop with a 2.5 GHz prescaler for use in the local oscillator subsystem of radio transceivers. Multi-modulus division ratios of 32/33 and 64/65 are selectable thru serial programming to enable pulse swallowing operation. When combined with an external VCO, the FS8170 becomes the core of a very low power frequency synthesizer well-suited for mobile communication applications, such as 2.4 GHz ISM-band wireless data links and cellular GSM and PCS.
Parametrics
FS8170 absolute maximum ratings: (1)Supply voltage range VCC: VSS – 0.3 to VSS + 4.0 V; (2)Supply voltage range VP: VCC to 6.0 V; (3)Input voltage range VFIN: VSS – 0.5 to VDD + 0.5 V; (4)Output voltage range VO: VSS to VCC V; (5)Output voltage range VDO: VSS to VP V; (6)Storage temperature range TSTG: –55 to 125 °C; (7)Soldering temperature range TSLD: 260 °C; (8)Soldering time range tSLD: 4 s; (9)ESD rating (human body mode): 3500 eV.
Features
FS8170 features: (1)Maximum input frequency: 2.5 GHz; (2)Supply voltage range from 2.4 V to 3.6 V; (3)Low current consumption in locked state: 3.5 mA typ. (VCC = VP = 2.7 V, TA = +25 °C); 4.0 mA typ. (VCC = VP = 3.0 V, TA= +25 °C); 10 μA max. in asynchronous power-down mode; (4)Digitally-filtered lock detect output; (5)18-bit programmable input frequency divider using ÷ 32/33/64/65 multi-modulus prescaler with divide ratio range from 992 to 65631 for ÷ 32/33 mode and from 4032 to 131135 for ÷ 64/65 mode; (6)14-bit programmable reference frequency divider with divide ratio range from 3 to 16383; (7)Programmable charge pump current: 1.5 mA or 6 mA; (8)Pin compatible with Fujitsu MB15E07, MB15E07L, MB15E07SL; (9)16 pin, plastic TSSOP (0.65 mm pitch).

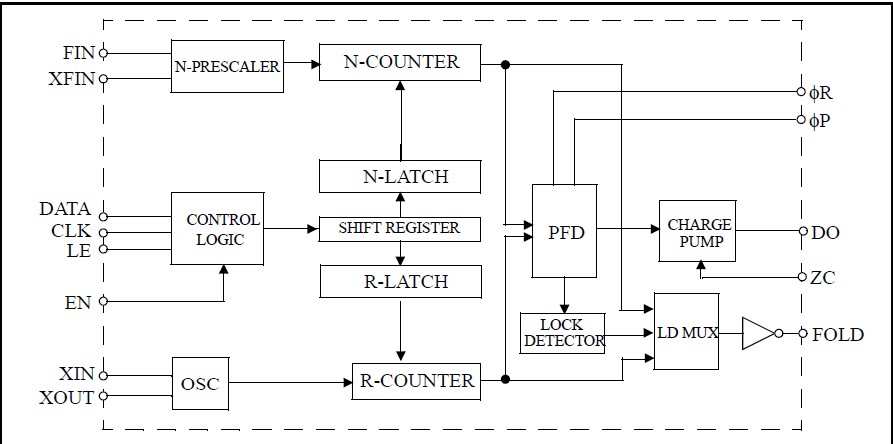

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FS8170 |
Other |
|
Data Sheet |
Negotiable |
|
||||
