Product Summary
The fan8412mx is a monolithic integrated circuit, and suitable for DC cooling fan motor predriver. It is ideal for : DC cooling fan motor
Parametrics
fan8412mx absolute maximum ratings: (1)Maximum Power Supply Voltage VCCMAX: 32 V; (2)Maximum Power Dissipationnote1 PDMAX: 600 mW; (3)Thermal Resistancenote1 ΘJA: 208 °C/W; (4)Maximum Output Voltage VOMAX: 36 V; (5)Maximum Output Current IOMAX: 0.07 A; (6)Alarm Output Current IAL: 10 mA; (7)Alarm Output Withstanding Voltage VAL: 36 V; (8)TACO Output Current ITACO: 10 mA; (9)TACO Output Withstanding Voltage VTACO: 36 V; (10)Operating Temperature TOPR: −40 ~ 95 °C; (11)Storage Temperature TSTG: −55 ~ 150 °C.
Features
fan8412mx features: (1)A wide range of operation voltage: 4V to 28V; (2)Locked motor protection with open collector alarm out or speed out and auto retry; (3)Compact package: 8-SOP-225.

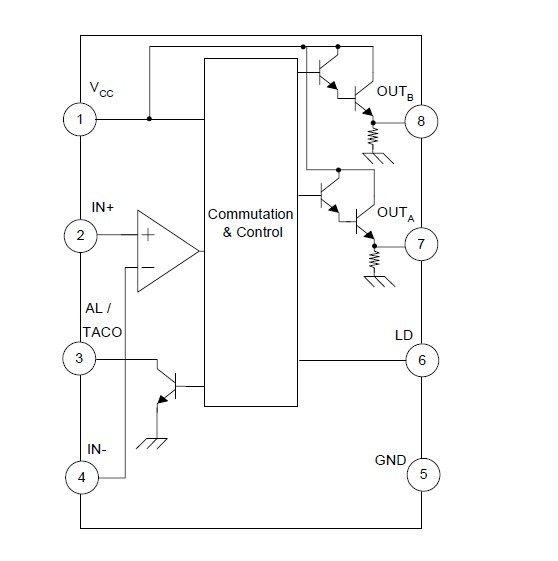

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FAN8412MX |
Fairchild Semiconductor |
Motor / Motion / Ignition Controllers & Drivers 2-PHASE HALF WAVE BLDC MOTOR DRIVER |
