Product Summary

The epm3064atc100-10 is a programmable logic device. Fabricated with advanced CMOS technology, the EEPROM–based the epm3064atc100-10 operates with a 3.3-V supply voltage and provide 600 to 10,000 usable gates, ISP, pin-to-pin delays as fast as 4.5 ns, and counter speeds of up to 227.3 MHz.

Parametrics

epm3064atc100-10 absolute maximum ratings: (1) Supply voltage Vcc: -0.5 to 4.6V; (2) DC input voltage VI: -2.0 to 5.75V; (3) DC output current, per pin Iout: -25 to 25mA; (4) Storage temperature Tstg: -65 to 150° C (No bias) ; (5) Ambient temperature TA: -65 to 135° C (Under bias) ; (6) Junction temperature Tj: 135° C (PQFP and TQFP packages, under bias) .

Features

epm3064atc100-10 features: (1) High–performance, low–cost CMOS EEPROM–based programmable logic devices (PLDs) built on a MAX architecture; (2) 3.3-V in-system programmability (ISP) through the built–in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with advanced pin-locking capability; (3) Built–in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990; (4) High–density PLDs ranging from 600 to 10,000 usable gates; (5) 4.5–ns pin–to–pin logic delays wi th counter frequencies of up to 227.3 MHz; (6) Programmable interconnect array (P IA) continuous routing structure for fast, predictable performance; (7) Hot–socketing support; (8) Industrial temperature range.

Diagrams

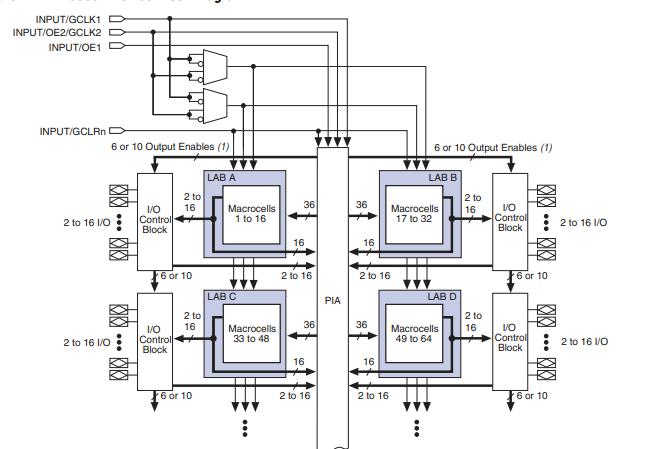

epm3064atc100-10 Block Diagram
