Product Summary
The ep7312-iv is designed for ultra-low-power operation. Its core operates at only 2.5 V, while its I/O has an operation range of 2.5 V–3.3 V. The device has three basic power states: operating, idle and standby. The EP7312 integrates an interface to enable a direct connection to many low cost, low power, high quality audio converters. In particular, high quality ADCs, DACs, or CODECs such as the Cirrus Logic CS53L32A, CS43L42, and CS42L50 are easily added to an EP73xx design via the DAI. Some of these devices feature digital bass and treble boost, digital volume control and compressor-limiter functions.
Parametrics
ep7312-iv absolute maximum ratings: (1)DC Core, PLL, and RTC Supply Voltage 2.9 V; (2)DC I/O Supply Voltage (Pad Ring) 3.6 V; (3)DC Pad Input Current ±10 mA/pin; ±100 mA cumulative; (4)Storage Temperature, No Power –40°C to +125°C.
Features
ep7312-iv features: (1)ARM720T Processor ARM7TDMI CPU Operating at Speeds of 74 and ; (2)90 MHz; (3)8 kBytes of Four-way Set-associative Cache; (4)MMU with 64-entry TLB ; (5)Thumb Code Support Enabled; (6)Ultra low power; (7)90 mW at 74 MHz Typical; (8)108 mW at 90 MHz Typical; (9)<.03 mW in the Standby State; (10)Advanced Audio Decoder/decompression Capability; (11)Supports bit streams with adaptive bit rates.; (12)Allows for support of multiple audio decompression algorithms (MP3, WMA, AAC, Audible, etc.).

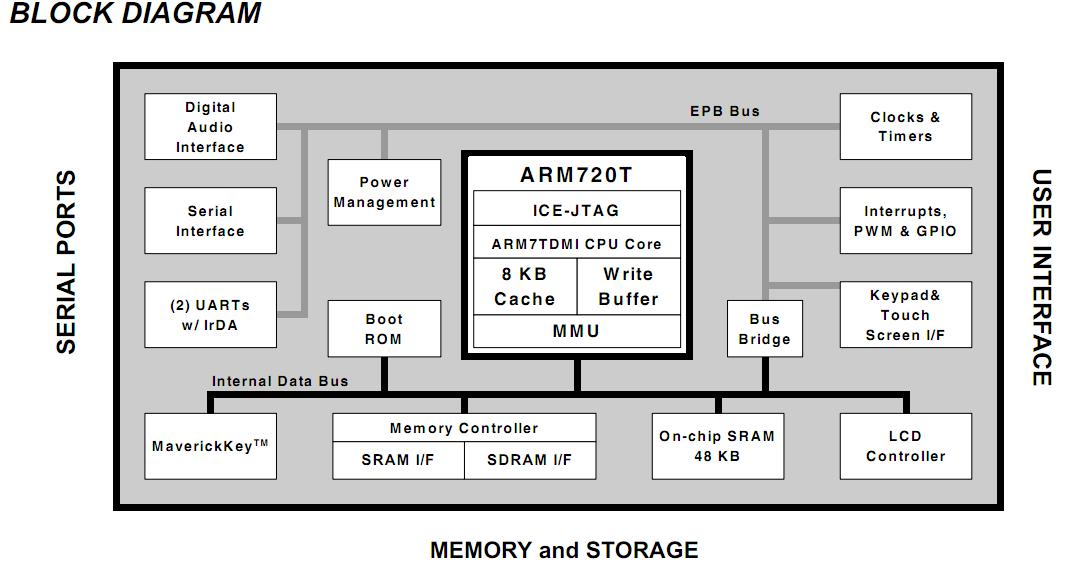

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP7312-IV |
|
IC ARM720T MCU 74MHZ 208-LQFP |
Data Sheet |
Negotiable |
|
||||||||||
 |
EP7312-IV-90 |
|
IC ARM720T MCU 90MHZ 208-LQFP |
Data Sheet |
Negotiable |
|
||||||||||
 |
EP7312-IVZ |
Cirrus Logic |
Audio Systems-on-a-Chip (SoC) IC Hgh-Prfrmnc Low- Power SOC w/SDRAM |
Data Sheet |
|
|
||||||||||
