Product Summary
The el2045cs is a high speed, low power, low cost monolithic operational amplifier built on Elantecs proprietary complementary bipolar process. The el2045cs is gain-of-2 stable and features a 275 V/ms slew rate and 100 MHz gain-bandwidth product while requiring only 5.2 mA of supply current. Applications are (1)Video amplifier; (2)Single-supply amplifier; (3)Active filters/integrators; (4)High-speed sample-and-hold; (5)High-speed signal processing; (6)ADC/DAC buffer; (7)Pulse/RF amplifier; (8)Pin diode receiver; (9)Log amplifier; (10)Photo multiplier amplifier; (11)Difference amplifier.
Parametrics
el2045cs absolute maximum ratings: (1)Supply Voltage (VS): 18V or 36V; (2)Differential Input Voltage (dVIN): 10V; (3)Operating Temperature Range (TA): 0°C to a75°C; (4)Operating Junction Temperature (TJ): 150°C; (5)Storage Temperature (TST): -65°C to a150°C.
Features
el2045cs features: (1)100 MHz gain-bandwidth product; (2)Gain-of-2 stable; (3)Low supply current: 5.2 mA at VS=g15V; (4)Wide supply range =g2V to g18V dual-supply, = 2.5V to 36V single-supply; (5)High slew rate e 275 V/ms; (6)Fast settling e 80 ns to 0.1% for a 10V step; (7)Low differential gain e 0.02% at AVe a2, RL e 150X; (8)Low differential phase e 0.07§ at AVe a2, RL e 150X; (9)Stable with unlimited capacitive load; (10)Wide output voltage swing.

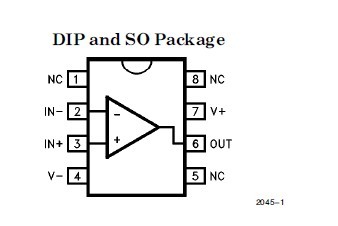

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EL2045CS |
IC OPAMP 100MHZ GAIN-OF-2 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
EL2045CS-T13 |
IC OPAMP 100MHZ GAIN-OF-2 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
EL2045CS-T7 |
IC OPAMP 100MHZ GAIN-OF-2 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
EL2045CSZ |
IC OPAMP 100MHZ GAIN-OF-2 8-SOIC |
Data Sheet |
|
|
||||||||||||
EL2045CSZ-T13 |
IC OPAMP 100MHZ GAIN-OF-2 8-SOIC |
Data Sheet |
|
|
||||||||||||
EL2045CSZ-T7 |
IC OPAMP 100MHZ GAIN-OF-2 8-SOIC |
Data Sheet |
|
|
