Product Summary
The DTC114YKA T146 is a digital transistors (built-in resistors).
Parametrics
DTC114YKA T146 absolute maximum ratings: (1)Supply voltage: 50 V; (2)Input voltage: -6 to +40 V; (3)Output current IO: 70 mA; (4)Power dissipation IC(Max.): 100 mA; (5)Junction temperature: 200 mW; (6)Storage temperature: -55 to +150 °C.
Features
DTC114YKA T146 features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit); (2)The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects; (3)Only the on/off conditions need to be set for operation, making device design easy.

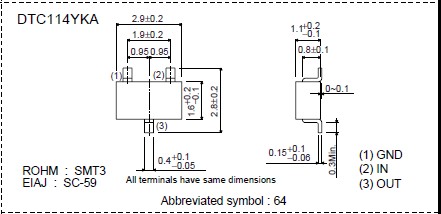

Diagrams
