DS1233A-10

DS1233A-10, EconoReset, 7.0V, 5kΩ, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.73~0.73 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 200 :	0.73 / Piece

PartNumber:: DS1233A-10

Brand:: DALLAS - DALLAS | Pack: SOP | D/C: 02+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-10

From Other Seller

Part Number:DS1233A-10
US $0.73 - 0.73
Quantity:

piece

Product Summary

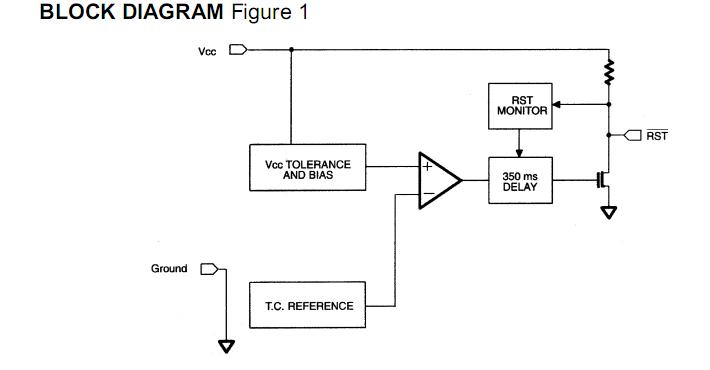

The ds1233a-10 is a 5V EconoReset. The ds1233a-10 monitors two vital conditions for a microprocessor: power supply and external override. A precision temperature compensated reference and comparator circuit are used to monitor the status of the power supply (VCC). The second function of the ds1233a-10 is pushbutton reset control. The ds1233a-10 debounces a pushbutton closure and will generate a 350 ms reset pulse upon release.

Parametrics

ds1233a-10 absolute maximum ratings: (1)Voltage on VCC Pin Relative to Ground:-0.5V to +7.0V; (2)Voltage on I/O Relative to Ground:-0.5V to VCC +0.5V; (3)Operating Temperature:-40℃ to +85℃; (4)Storage Temperature:-55℃ to +125℃; (5)Soldering Temperature:260℃ for 10 seconds.

Features

ds1233a-10 features: (1)Automatically restarts microprocessor after power failure; (2)Monitors pushbutton for external override; (3)Internal circuitry debounces pushbutton switch; (4)Maintains reset for 350 ms after VCC returns to an in-tolerance condition or pushbutton released; (5)Accurate 5%, 10% or 15% microprocessor 5V power supply monitoring; (6)Reduces need for discrete components; (7)Precision temperature-compensated voltage reference and voltage sensor; (8)Low-cost TO-92 package or surface-mount SOT-223 package; (9)Internal 5kΩ pull-up resistor; (10)Operating temperature of -40 to +85℃.
