DG540DN

monolithic wideband/video switch, PLCC, –0.3 V to 21 V, 20 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.45~2.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 200 :	2.45 / Piece

PartNumber:: DG540DN

Brand:: Vishay Siliconix - Vishay | Pack: PLCC | D/C: 03+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-02

From Other Seller

Part Number:DG540DN
US $2.45 - 2.45
Quantity:

piece

Product Summary

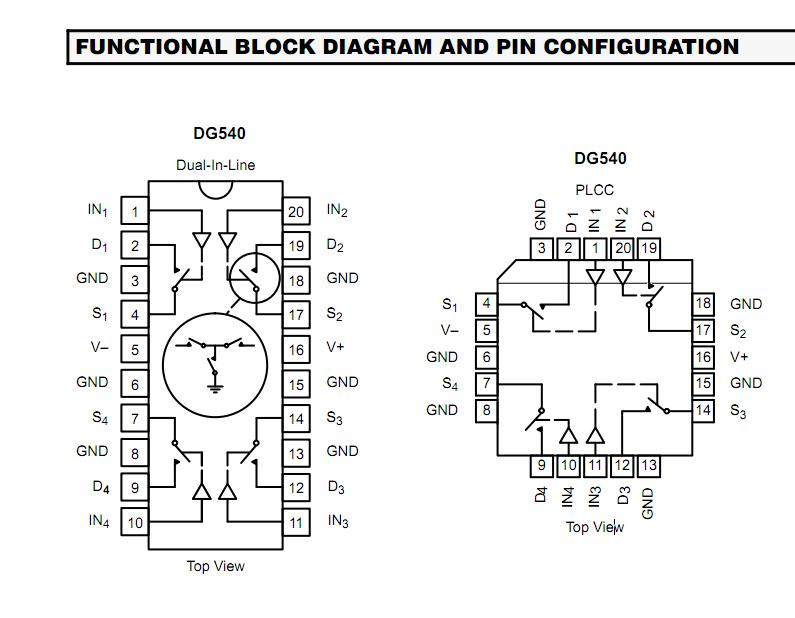

The dg540dn is a high performance monolithic wideband/video switch designed for switching RF, video and digital signals. By utilizing a “T” switch configuration on each channel, these devices achieve exceptionally low crosstalk and high off-isolation. The crosstalk and off-isolation of the dg540dn are further improved by the introduction of extra GND pins between signal pins. The applications of the dg540dn are (1)RF and Video Switching; (2)RGB Switching; (3)Local and Wide Area Networks; (4)Video Routing; (5)Fast Data Acquisition; (6)ATE; (7)Radar/FLR Systems; (8)Video Multiplexing.

Parametrics

dg540dn absolute maximum ratings: (1)V+ to V– –0.3 V to 21 V; (2)V+ to GND –0.3 V to 21 V; (3)V– to GND –19 V to +0.3 V; (4)Digital Inputs (V–) –0.3 V to (V+) +0.3 V or 20 mA, whichever occurs first; (5)VS, VD (V–) –0.3 V to (V–) +14 V or 20 mA, whichever occurs first; (6)Continuous Current (Any Terminal) 20 mA; (7)Current, S or D (Pulsed 1 ms, 10% duty cycle max) 40 mA; (8)Storage Temperature (AP Suffix) –65 to 150℃ ; (9)Power Dissipation (Package): 470 mW.

Features

dg540dn features: (1)Wide Bandwidth: 500 MHz; (2)Low Crosstalk: –85 dB; (3)High Off-Isolation: –80 dB @ 5 MHz; (4)“T” Switch Configuration; (5)TTL and CMOS Logic Compatible; (6)Fast Switching—tON: 45 ns; (7)Low rDS(on): 30 Ω.
