CS82C54-12

high performance, CMOS Programmable Interval Timer, 10MHZ, 28PLCC, +8.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.44~2.44 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 200 :	2.44 / Piece

PartNumber:: CS82C54-12

Brand:: Elantec Semiconductor - Intersil | Pack: PLCC | D/C: 00+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-02

From Other Seller

Part Number:CS82C54-12
US $2.44 - 2.44
Quantity:

piece

Product Summary

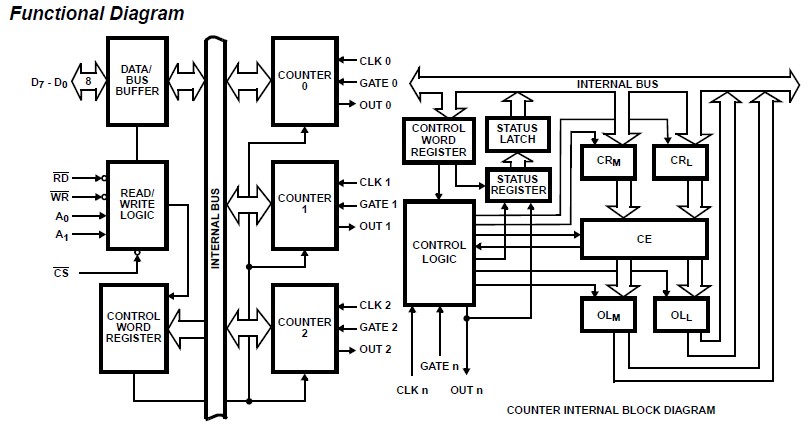

The cs82c54-12 is a high performance CMOS Programmable Interval Timer manufactured using an advanced 2 micron CMOS process. The cs82c54-12 has three independently programmable and functional 16-bit counters. The Intersil advanced CMOS process results in a significant reduction in power with performance equal to or greater than existing equivalent products. The cs82c54-12 is used as an event counter, elapsed time indicator, programmable one-shot, and many other applications.

Parametrics

cs82c54-12 absolute maximum ratings: (1)Supply Voltage: +8.0V; (2)Input, Output or I/O Voltage: GND-0.5V to VCC +0.5V; (3)ESD Classification: Class 1; (4)Operating Voltage Range: +4.5V to +5.5V; (5)Operating Temperature Range: 0 to +70℃.

Features

cs82c54-12 features: (1)8MHz to 12MHz Clock Input Frequency; (2)Compatible with NMOS 8254: Enhanced Version of NMOS 8253; (3)Three Independent 16-Bit Counters; (4)Six Programmable Counter Modes; (5)Status Read Back Command; (6)Binary or BCD Counting; (7)Fully TTL Compatible; (8)Single 5V Power Supply; (9)Low Power; (10)Pb-Free Plus Anneal Available (RoHS Compliant).
