Product Summary
The cs7410-cq is a CD/MP3/WMA Audio controller. The cs7410-cq is a true system-on-a-chip for the CD-based digital audio market. The cs7410-cq is a complete single chip low-power programmable audio decoder
Parametrics
cs7410-cq absolute maximum ratings: (1) Power Supply Voltage on I/O ring VDDIO: -0.5 to 4.6V; (2) Power Supply Voltage on core logic and PLL VDDCORE: -0.5 to 2.5V; (3) Digital Input Applied Voltage (power applied) VI: -0.5 to 5.5V; (4) Digital Input Forced Current II: -10 to 10mA; (5) Digital Output Forced Current IO: -50 to 50mA; (6) Lead Soldering Temperature TSOL: 260°C; (7) Vapor Phase Soldering Temperature TVSOL: 230°C; (8) Power consumption Ptot: 1W.
Features
cs7410-cq features: (1) Super on-chip Integration for low cost and low count bill of materials; (2) 2-Bit RISC Processor performs audio decode and system management functions; (3) 16-bit DSP for audio special effects; (4) 80 Kbytes internal SRAM, and 256 Kbytes internal ROM; (5) Simultaneous 4 channels PCM audio output and IEC-958 output; (6) Supports ISO9660 and multi-session write methods; (7) Low power 0.18 micron technology; (8) Three serial control/status ports.

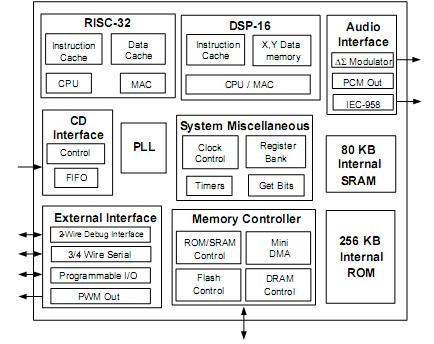

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CS7410-CQ |
Cirrus Logic |
Processors - Application Specialized CD/MP3/WMA/AAC Audio Controller |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
CS740111-IQZ |
Cirrus Logic |
ADC (A/D Converters) 3-Ch. Power/Energy SoC w/64K Flash |
Data Sheet |
Negotiable |
|
||||
 |
CS740121-IQZ |
Cirrus Logic |
ADC (A/D Converters) 3-Ch. Power/Energy SoC w/128K Flash |
Data Sheet |
Negotiable |
|
||||
|
CS740131-IQZ |
Cirrus Logic |
ADC (A/D Converters) 3-Ch. Power/Energy SoC w/256K Flash |
Data Sheet |
Negotiable |
|
||||
|
CS7410 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
CS7410-CQ |
Cirrus Logic |
Processors - Application Specialized CD/MP3/WMA/AAC Audio Controller |
Data Sheet |
Negotiable |
|
||||
|
CS7410-IQZ |
Cirrus Logic |
Processors - Application Specialized CD/MP3/WMA/AAC Audio Controller |
Data Sheet |
Negotiable |
|
||||
