Product Summary
The CS4341-CZZR is a complete stereo digital-to-analog system including digital interpolation, fourth-order Delta- Sigma digital-to-analog conversion, digital de-emphasis and switched capacitor analog filtering. The advantages of this architecture include: ideal differential linearity, no distortion mechanisms due to resistor matching errors, no linearity drift over time and temperature and a high tolerance to clock jitter. The CS4341-CZZR accepts data at audio sample rates from 4 kHz to 100 kHz, consumes very little power, and operates over a wide power supply range. The features of the CS4341-CZZR are ideal for DVD players, CD players, settop box and automotive systems.
Parametrics
CS4341-CZZR absolute maximum ratings: (1)DC Power Supply, VA: -0.3 to 6.0 V; (2)Input Current, Iin: ±10 mA; (3)Digital Input Voltage, VIND: -0.3 to VA+0.4 V; (4)Ambient Operating Temperature (power applied), TA: -55 to 125℃; (5)Storage Temperature, Tstg: -65 to 150℃.
Features
CS4341-CZZR features: (1)101 dB Dynamic Range; (2)-91 dB THD+N; (3)+3.0 V or +5.0 V Power Supply; (4)Low Clock-Jitter Sensitivity; (5)Filtered Line-Level Outputs; (6)On-Chip Digital De-Emphasis for 32, 44.1 and 48 kHz; (7)ATAPI Mixing; (8)Digital Volume Control with Soft Ramp; (9)Popguard Technology for Control of Clicks and Pops; (10)33 mW with 3.0 V Supply.

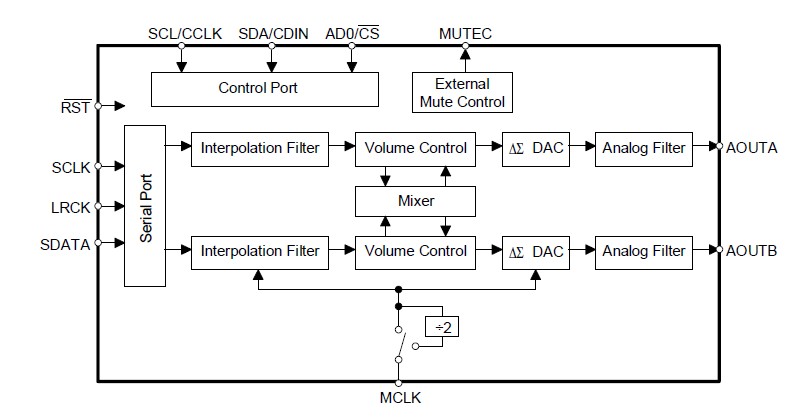

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CS4341-CZZR |
Cirrus Logic |
DAC (D/A Converters) IC 24bit 96kHz 101dB Stereo DAC w/VC |
Data Sheet |
|
|
||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||
|
CS43122 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
|
CS43122-KSZ |
Cirrus Logic |
DAC (D/A Converters) IC 122dB 24-Bit 192kHz DAC |
Data Sheet |
|
|
||||||||||
|
CS43122-KSZR |
Cirrus Logic |
DAC (D/A Converters) IC 122dB 24-Bit 192kHz DAC |
Data Sheet |
|
|
||||||||||
|
CS4330 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
|
CS4330-KS |
Cirrus Logic |
DAC (D/A Converters) IC 8-Pin Stereo DAC for Digital Audio |
Data Sheet |
Negotiable |
|
||||||||||
|
CS4330-KSR |
Cirrus Logic |
DAC (D/A Converters) IC 8-Pin Stereo DAC for Digital Audio |
Data Sheet |
Negotiable |
|
||||||||||
