Product Summary

The CS4338-KS is an 8-Pin, 24-Bit, 96 kHz Stereo D/A Converter. The CS4338-KS is a complete, stereo digital-to-analog output system including interpolation, 1-bit D/A conversion and output analog filtering in an 8-pin package. The CS4338-KS supports all major audio data interface formats, and the individual devices differ only in the supported interface format. The CS4338-KS is based on delta-sigma modulation, where the modulator output controls the reference voltage input to an ultra-linear analog low-pass filter. This architecture allows for infinite adjustment of sample rate between 2 kHz and 100 kHz simply by changing the master clock frequency.

Parametrics

CS4338-KS absolute maximum ratings: (1)DC Power Supply VA: -0.3 to 6.0V; (2)Input Current, Any Pin Except Supplies Iin: ±10mA; (3)Digital Input Voltage VIND: -0.3 to VA+0.4V; (4)Ambient Operating Temperature (power applied) TA: -55 to 125℃; (5)Storage Temperature Tstg: -65 to 150℃.

Features

CS4338-KS features: (1)Complete Stereo DAC System: Interpolation, D/A, Output Analog Filtering; (2)24-Bit Conversion; (3)96 dB Dynamic Range; (4)-88 dB THD+N; (5)Low Clock Jitter Sensitivity; (6)Single +5 V Power Supply; (7)Filtered Line Level Outputs; (8)On-Chip Digital De-emphasis; (9)Popgaurd Technology; (10)Functionally Compatible with CS4330/31/33.

Diagrams

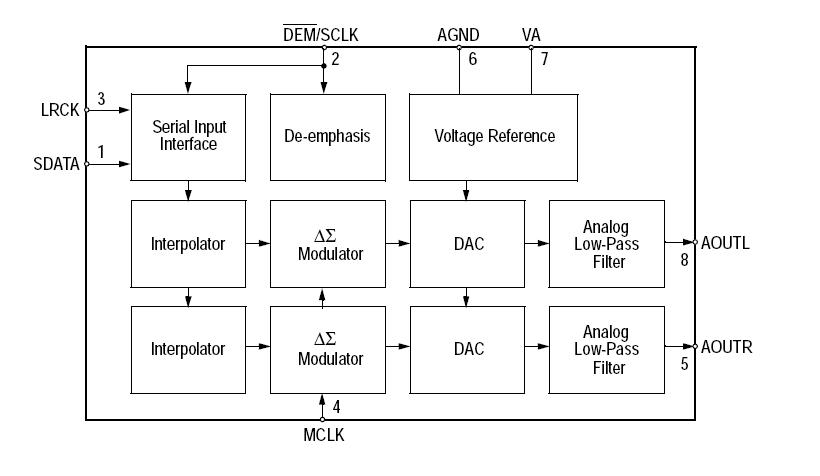

cs4338-ks pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CS4338-KSZ
CS4338-KSZ
Cirrus Logic
DAC (D/A Converters) IC 8-Pin 24Bit 96kHz Stereo DAC
Data Sheet
0-1: $1.78
1-25: $1.43
25-50: $1.39
50-100: $1.30
