Product Summary

The CS4299-JQ is an AC 97 2.1 compatible stereo audio codec designed for PC multimedia systems. Coupling the CS4299-JQ with a PCI audio accelerator core logic supporting the AC 97 interface, implements cost effective, superior quality, audio solution. The CS4299-JQ surpasses PC 99 and AC 97 2.1 audio qual standards.

Parametrics

CS4299-JQ absolute maximum ratings: (1) power supplies: -0.3 to 6V; (2) Total Power Dissipation: 1.25W; (3) Input Current per Pin: -10 to 10mA; (4) Output Current per Pin: -15 to 15mA; (5) Analog Input voltage: -0.3 to AVdd +0.3V; (6) Digital Input voltage: -0.3 to Dvdd +0.3V; (7) Ambient Temperature: -55 to 110°C; (8) Storage Temperature: -65 to 150°C.

Features

CS4299-JQ features: (1) AC 97 2.1 Compatible; (2) Industry Leading Mixed Signal Technology; (3) 20-bit Stereo Digital-to-Analog Converters; (4) 18-bit Stereo Analog-to-Digital Converters; (5) Sample Rate Converters; (6) Four Analog Line-level Stereo Inputs for LINE_IN, CD, VIDEO, and AUX; (7) Dual Stereo Line-level Outputs for LINE_OUT and ALT_LINE_OUT; (8) Dual Microphone Inputs; (9) High Quality Pseudo-Differential CD Input; (10) CrystalClear 3D Stereo Enhancement.

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

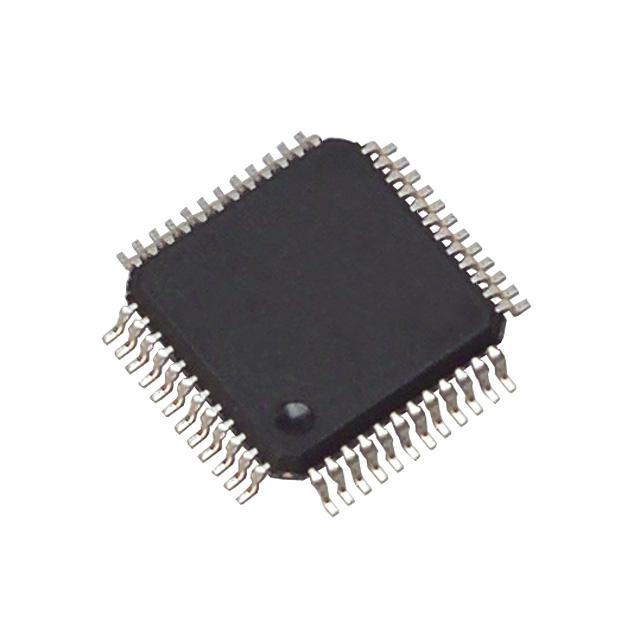

CS4299-JQZ
CS4299-JQZ
Cirrus Logic
Audio CODECs IC AC'97 Codec w/SRC
Data Sheet
0-1: $2.49
1-25: $2.35
25-50: $2.33
50-100: $2.26
CS4299-JQZR
CS4299-JQZR
Cirrus Logic
Audio CODECs IC AC'97 Codec w/SRC
Data Sheet
0-1545: $2.22
