The cd40106bm is a monolithic complementary CMOS Hex Schmitt Trigger integrated circuit constructed with N and P-channel enhancement transistors. The cd40106bm positive and negative-going threshold voltages, VT+ and VT-, show low variation with respect to temperature (typ 0.0005V/℃ at VDD = 10V), and hysteresis, VT+ - VT- ≥ 0.2 VDD is guaranteed. All inputs of the cd40106bm are protected from damage due to static discharge by diode clamps to VDD and VSS.
Parametrics
cd40106bm absolute maximum ratings: (1)DC Supply Voltage (VDD): -0.5 to +18 VDC; (2)Input Voltage (VIN): -0.5 to VDD +0.5 VDC; (3)Storage Temperature Range (TS): -65℃ to +150℃; (4)Power Dissipation (PD): Dual-In-Line: 700 mW, Small Outline: 500 mW; (5)Lead Temperature (TL) (Soldering, 10 seconds): 260℃.
Features
cd40106bm features: (1)Wide supply voltage range: 3V to 15V; (2)High noise immunity: 0.7 VDD (typ.); (3)Low power TTL compatibility: Fan out of 2 driving 74L or 1 driving 74LS; (4)Hysteresis: 0.4 VDD (typ.), 0.2 VDD guaranteed; (5)Equivalent to MM74C14; (6)Equivalent to MC14584B.

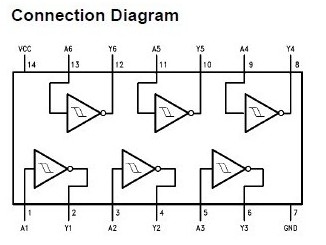

Diagrams
