Product Summary
The bga715l7 e6327 is a front-end low noise amplifier for Global Positioning System (GPS) applications. The LNA of the bga715l7 e6327 provides 20 dB gain, 0.7 dB noise figure and high linearity performance in the application configuration described in Chapter 4. Current consumption is as low as 3.3 mA. The bga715l7 e6327 is based upon Infineon Technologies B7HFM Silicon Germanium technology. The bga715l7 e6327 operates over a 1.5 V to 3.3 V supply range. If an ultra low noise figure of 0.6 dB is required, please refer to Infineon bga715l7 e6327 Application Note AN161. The applications of the bga715l7 e6327 include 1575 MHz GPS, Galileo, GPS phone.
Parametrics
bga715l7 e6327 absolute maximum ratings: (1)Voltage at pin VCC, VCC: -0.3 to 3.6 V; (2)Voltage at pin AI, VAI: -0.3 to 0.9 V; (3)Voltage at pin BIAS, VBIAS: -0.3 to 0.9 V; (4)Voltage at pin AO, VAO: -0.3 to VCC+ 0.3 V; (5)Voltage at pin PON, VPON: -0.3 to VCC+ 0.3 V; (6)Voltage at pin GND, VGND: -0.3 to 0.3 V; (7)Current into pin VCC, ICC: 10 mA; (8)RF input power, PIN: 10 dBm; (9)Total power dissipation, Ptot: 36 mW; (10)Junction temperature, TJ: 150 ℃; (11)Ambient temperature range, TA: -40 to 85 ℃; (12)Storage temperature range, TSTG: -65 to 150 ℃; (13)Human Body Model ESD capability, all pin to all pin, VESD_HBM: 2000 V; (14)Machine Model ESD capability, all pin to all pin, VESD_MM: 100 V.
Features
bga715l7 e6327 features: (1)High gain: 20 dB; (2)Low Noise Figure: 0.7 dB; (3)Low current consumption: 3.3 mA; (4)Supply voltage: 1.5 V to 3.3 V; (5)High input compression point -15.5 dBm at 1.8 V supply High input 3rd intercept point -7 dBm at 1.8 V supply; (6)B7HFM Silicon Germanium technology; (7)RF output internally matched to 50 Ω; (8)Low external part count; (9)2kV HBM ESD protection (including AI-pin); (10)Tiny TSLP-7-1 leadless package; (11)Moisture sensitivity level: MSL 1; (12)Pb-free (RoHS compliant) package.

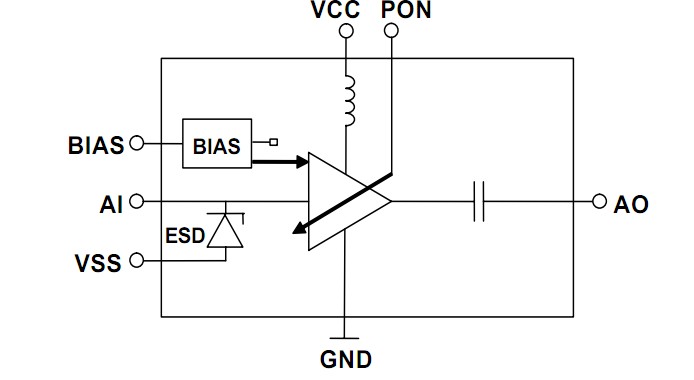

Diagrams
