Product Summary
The ba18bc0fp-e2 is a low-saturation regulator with an output current of 1.0 A and an output voltage accuracy of ±2%. A broad output voltage range is offered, from 1.5V to 10V, and built-in overcurrent protection and thermal shutdown (TSD) circuits prevent damage due to short-circuiting and overloading, respectively. It is ideal for: All electronic devices that use microcontrollers and logic circuits.
Parametrics
ba18bc0fp-e2 absolute maximum ratings: (1)Power supply voltage VCC: 18 V; (2)Power dissipation TO252-3 Pd: 1200 mW; (3)Operating temperature range Topr: -40 to +105 °C; (4)Ambient storage temperature Tstg: -55 to +150 °C; (5)Maximum junction temperature Tjmax: 150 °C.
Features
ba18bc0fp-e2 features: (1)Output voltage accuracy: ±2% Broad output range available: 1.5 V -10 V (BAxxBC0 series); (2)Low saturation-voltage type with PNP output; (3)Built-in overcurrent protection circuit; (4)Built-in thermal shutdown circuit; (5)Integrated shutdown switch (BAxxBC0WT, BAxxBC0WT-5, or BAxxBC0WFP Series, BA00BC0WCP-V5).

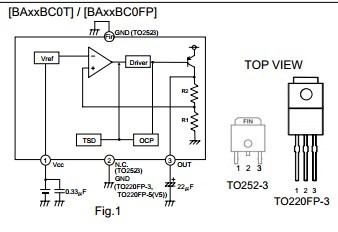

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BA18BC0FP-E2 |
ROHM Semiconductor |
Low Dropout (LDO) Regulators IC LDO 1.8V 1A |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
BA1800 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BA18BC0FP-E2 |
ROHM Semiconductor |
Low Dropout (LDO) Regulators IC LDO 1.8V 1A |
Data Sheet |
|
|
||||||||||||
 |
BA18BC0WFP-E2 |
ROHM Semiconductor |
Low Dropout (LDO) Regulators REG 1.8V 1A |
Data Sheet |
|
|
||||||||||||
|
BA18BC0WT-V5 |
ROHM Semiconductor |
Low Dropout (LDO) Regulators LDO REG 1.8V 1A 5PIN |
Data Sheet |
|
|
||||||||||||
|
BA18DD0T |
ROHM Semiconductor |
Low Dropout (LDO) Regulators LDO REG 1.8V 2A 3PIN |
Data Sheet |
|
|
||||||||||||
 |
BA18DD0WHFP-TR |
|
IC REG LDO 1.8V 2A HRP5 |
Data Sheet |
|
|
||||||||||||
