Product Summary
The ATMEGA163L-8AC is a low-power CMOS 8-bit microcontroller based on the AVR architecture. By executing powerful instructions in a single clock cycle, the ATMEGA163L-8AC achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATMEGA163L-8AC absolute maximum ratings: (1)Conversion Time Free Running Conversion: 65 to 260 μs; (2)ClockFrequency: 50 to 200 kHz; (3)Analog Supply Voltage: VCC - 0.3(1)to VCC + 0.3(2)V; (4)Reference Voltage: 2 V to AVCC V; (5)Internal Voltage Reference: 2.35 to 2.77 V; (6)Bandgap Voltage Reference: 1.12 to 1.32 V; (7)Reference Input Resistance: 6 to 13 kΩ; (8)Input Voltage: AGND to AREF V; (9)Analog Input Resistance: 100 MΩ.
Features
ATMEGA163L-8AC features: (1)130 Powerful Instructions Most Single Clock Cycle Execution; (2)32 x 8 General Purpose Working Registers; (3)Fully Static Operation; (4)Up to 8 MIPS Throughput at 8 MHz; (5)On-chip 2-cycle Multiplier; (6)Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode; (7)One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode; (8)Real Time Clock with Separate Oscillator and Counter Mode; (9)Three PWM Channels; (10)8-channel, 10-bit ADC; (11)Byte-oriented Two-wire Serial Interface; (12)Programmable Serial UART; (13)Master/Slave SPI Serial Interface; (14)Programmable Watchdog Timer with Separate On-chip Oscillator; (15)Analog Comparator.

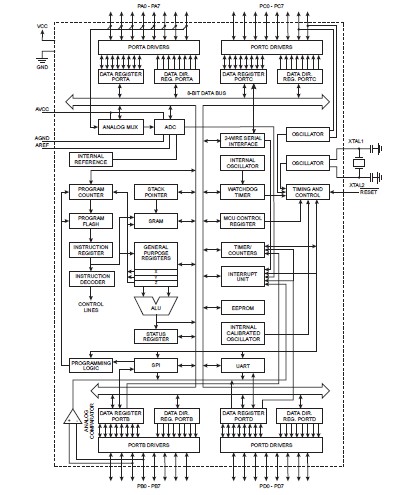

Diagrams
