ADP3120AJCPZ-RL

high voltage MOSFET driver, 12 V, SOP, adp3120ajcpz-rl, Analog Devices, 25ns, 3000pF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.46~0.46 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 3500 :	0.46 / Piece

PartNumber:: ADP3120AJCPZ-RL

Brand:: A-Data Technology - A-DATA | Pack: | D/C: 06+

Availability:: Supply Ability: 3500/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-12

From Other Seller

Part Number:ADP3120AJCPZ-RL
US $0.46 - 0.46
Quantity:

piece

Product Summary

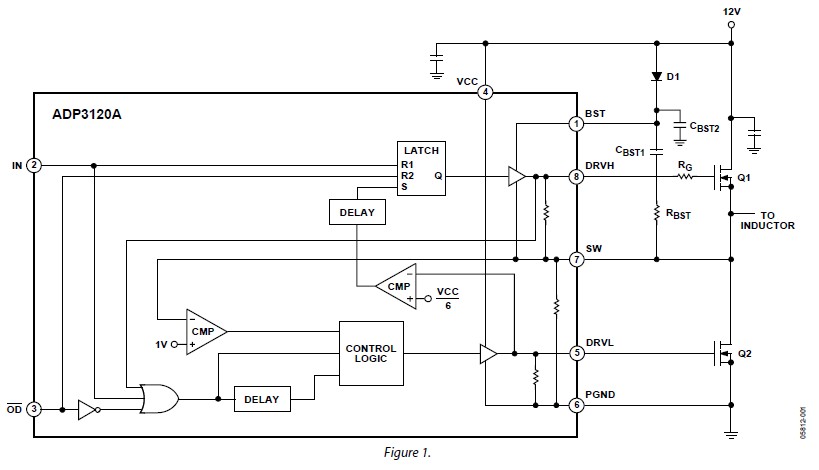

The adp3120ajcpz-rl is a dual, high voltage MOSFET driver optimized for driving two N-channel MOSFETs, the two switches in a nonisolated synchronous buck power converter. Each driver is capable of driving a 3000 pF load with a 45 ns propaga-tion delay and a 25 ns transition time. One of the drivers can be bootstrapped and is designed to handle the high voltage slew rate associated with floating high-side gate drivers. The adp3120ajcpz-rl includes overlapping drive protection to prevent shoot-through current in the external MOSFETs. Applications of the adp3120ajcpz-rl are Multiphase desktop CPU supplies, Single-supply synchronous buck converters.

Parametrics

adp3120ajcpz-rl absolute maximum ratings: (1)VCC: -0.3 V to +15 V; (2)BST DC: -0.3 V to VCC + 15 V; <200 ns: -0.3 V to +35 V; (3)BST to SW: -0.3 V to +15 V; (4)SW DC: -5 V to +15 V; <200 ns: -10 V to +25 V; (5)DRVH DC: SW - 0.3 V to BST + 0.3 V; <200 ns: SW - 2 V to BST + 0.3 V; (6)DRVL DC: -0.3 V to VCC + 0.3 V; <200 ns: -2 V to VCC + 0.3 V; (7)IN, OD: -0.3 V to +6.5 V; (8)θJA, SOIC_N 2-Layer Board: 123℃/W; 4-Layer Board: 90℃/W; (9)θJA, LFCSP_VD1 4-Layer Board: 50℃/W; (10)Operating Ambient Temperature Range: 0℃ to 85℃; (11)Junction Temperature Range: 0℃ to 150℃; (12)Storage Temperature Range: -65℃ to +150℃; (13)Lead Temperature Soldering (10 sec): 300℃; Vapor Phase (60 sec): 215℃; Infrared (15 sec): 260℃.

Features

adp3120ajcpz-rl features: (1)All-in-one synchronous buck driver; (2)Bootstrapped high-side drive; (3)One PWM signal generates both drives; (4)Anticross conduction protection circuitry; (5)OD for disabling the driver outputs: Meets CPU VR requirement when used with Analog Devices Flex -Mode controller.
