Product Summary
The AD808-622BRR7 is a fiber optic receiver. It is provides the receiver functions of data quantization, signal level detect, clock recovery and data retiming for 622 Mbps NRZ data. The device, together with a PIN diode/preamplifier combination, can be used for a highly integrated, low cost, low power SONET OC-12 or SDH STM-4 fiber optic receiver.
Parametrics
AD808-622BRR7 absolute maximum ratings: (1)Supply Voltage: +8 V; (2)Input Voltage (Pin 12 or Pin 13): VCC + 0.6 V; (3)Maximum Junction Temperature: +165°C; (4)Storage Temperature Range: –65°C to +150°C; (5)Lead Temperature Range (Soldering 10 sec): +300°C; (6)ESD Rating (Human Body Model): 1500 V.
Features
AD808-622BRR7 features: (1)Meets CCITT G.958 Requirements for STM-4 Regenerator—Type A; (2)Meets Bellcore TR-NWT-000253 Requirements for OC-12; (3)Output Jitter: 2.5 Degrees RMS; (4)622 Mbps Clock Recovery and Data Retiming; (5)Accepts NRZ Data, No Preamble Required; (6)Phase-Locked Loop Type Clock Recovery— No Crystal Required; (7)Quantizer Sensitivity: 4 mV; (8)Level Detect Range: 10 mV to 40 mV, Programmable; (9)Single Supply Operation: +5 V or –5.2 V; (10)Low Power: 400 mW; (11)10 KH ECL/PECL Compatible Output; (12)Package: 16-Lead Narrow 150 mil SOIC.

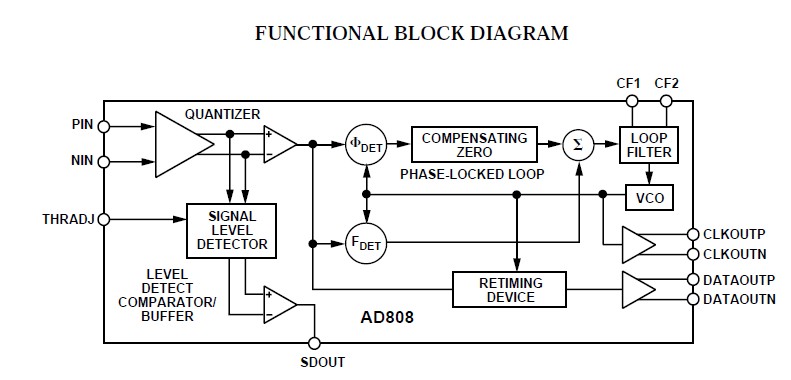

Diagrams
