Product Summary
The ad711jr-reelp is a high speed, precision monolithic operational amplifier offering high performance at very modest prices. Its very low offset voltage and offset voltage drift are the results of advanced laser wafer trimming technology. These performance of the ad711jr-reelp benefits allow the user to easily upgrade existing designs that use older precision BiFETs and, in many cases, bipolar op amps. Extended reliability PLUS screening is available, specified over the commercial and industrial temperature ranges. PLUS screening includes 168-hour burn-in, as well as other environmental and physical tests. The ad711jr-reelp is available in an 8-pin plastic mini-DIP, small outline, cerdip, TO-99 metal can, or in chip form.
Parametrics
ad711jr-reelp absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation: 500 mW; (3)Input Voltage: ±18 V; (4)Output Short Circuit Duration: Indefinite; (5)Differential Input Voltage: +VS and –VS; (6)Storage Temperature Range (Q, H): –65℃ to +150℃; (7)Storage Temperature Range (N): –65℃ to +125℃; (8)Operating Temperature Range: 0℃ to +70℃; (9)Lead Temperature Range (Soldering 60 sec): +300℃.
Features
ad711jr-reelp features: (1)16 V/ms min Slew Rate (AD711J); (2)3 MHz min Unity Gain Bandwidth (AD711J); (3)0.25 mV max Offset Voltage: (AD711C); (4)3 mV/8C max Drift: (AD711C); (5)200 V/mV min Open-Loop Gain (AD711K); (6)4 mV p-p max Noise, 0.1 Hz to 10 Hz (AD711C); (7)Available in Plastic Mini-DIP, Plastic SO, Hermetic; (8)Cerdip, and Hermetic Metal Can Packages; (9)MIL-STD-883B Parts Available; (10)Available in Tape and Reel in Accordance with EIA-481A Standard.

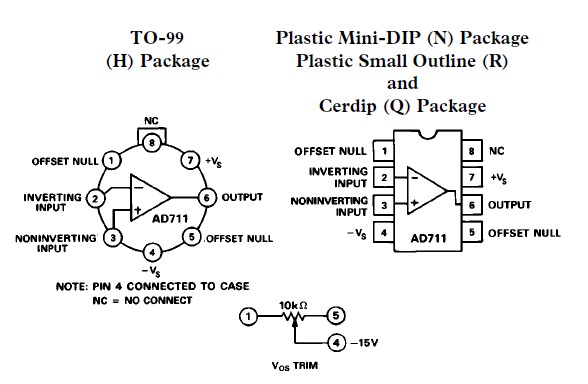

Diagrams
