Product Summary
The a42mx24-pq160i is an FPGA. It offer a cost-effective design solution at 5V. The a42mx24-pq160i is a single-chip solution and provides high performance while shortening the system design and development cycle. The device can integrate and consolidate logic implemented in multiple PALs, CPLDs, and FPGAs. Example applications of the a42mx24-pq160i include high-speed controllers and address decoding, peripheral bus interfaces, DSP, and co- processor functions.
Parametrics
a42mx24-pq160i absolute maximum ratings: (1)VCC, DC Supply Voltage: –0.5 to +7.0 V; (2)VI, Input Voltage: –0.5 to VCC+0.5 V; (3)VO, Output Voltage: –0.5 to VCC+0.5 V; (4)tSTG, Storage Temperature: –65 to +150℃.
Features
a42mx24-pq160i features: (1)Commercial, Industrial, Automotive, and Military Temperature Plastic Packages; (2)Commercial, Military Temperature, and MIL-STD-883 Ceramic Packages; (3)QML Certification; (4)Ceramic Devices Available to DSCC SMD.

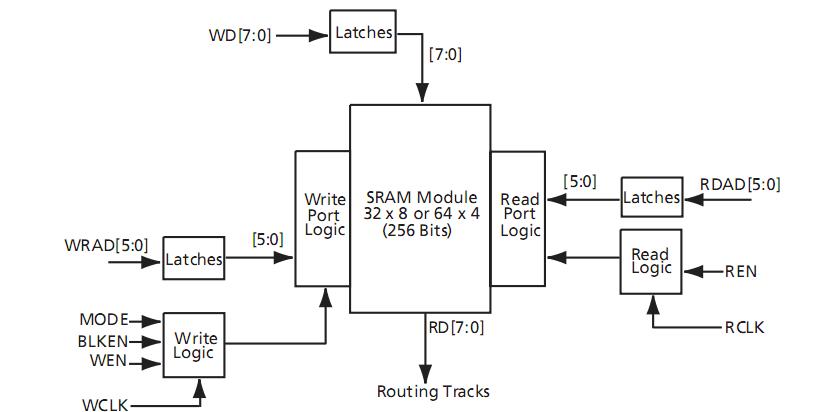

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 A42MX24-PQ160I |
|
IC FPGA MX SGL CHIP 36K 160-PQFP |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
A42MX09 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
A42MX09-1PL84 |
|
IC FPGA MX SGL CHIP 14K 84-PLCC |
Data Sheet |
|
|
||||||
|
A42MX09-1PL84I |
|
IC FPGA MX SGL CHIP 14K 84-PLCC |
Data Sheet |
|
|
||||||
|
A42MX09-1PL84M |
|
IC FPGA MX SGL CHIP 14K 84-PLCC |
Data Sheet |
|
|
||||||
|
A42MX09-1PLG84 |
|
IC FPGA MX SGL CHIP 14K 84-PLCC |
Data Sheet |
|
|
||||||
|
A42MX09-1PLG84I |
|
IC FPGA MX SGL CHIP 14K 84-PLCC |
Data Sheet |
|
|
||||||
