Product Summary
The a40mx04-fpl68 is an FPGA. It offers a cost-effective design solution at 5V. The a40mx04-fpl68 is a single-chip solution and provides high performance while shortening the system design and development cycle. The device can integrate and consolidate logic implemented in multiple PALs, CPLDs, and FPGAs. Example applications of the a40mx04-fpl68 include high-speed controllers and address decoding, peripheral bus interfaces, DSP, and coprocessor functions.
Parametrics
a40mx04-fpl68 absolute maximum ratings: (1)DC Supply Voltage:–0.5 to +7.0V; (2)Input Voltage:–0.5 to VCC+0.5V; (3)Output Voltage:–0.5 to VCC+0.5V; (4)Storage Temperature:–65℃ to +150℃.
Features
a40mx04-fpl68 features: (1)Single-Chip ASIC Alternative; (2)3,000 to 54,000 System Gates; (3)Up to 2.5 kbits Configurable Dual-Port SRAM; (4)Fast Wide-Decode Circuitry; (5)Up to 202 User-Programmable I/O Pins; (6)5.6 ns Clock-to-Out; (7)250 MHz Performance; (8)5 ns Dual-Port SRAM Access ; (9)100 MHz FIFOs; (10)7.5 ns 35-Bit Address Decode; (11)Commercial, Industrial, Automotive, and Military Temperature Plastic Packages; (12)Commercial, Military Temperature, and MIL-STD-883 Ceramic Packages; (13)QML Certification; (14)Ceramic Devices Available to DSCC SMD.

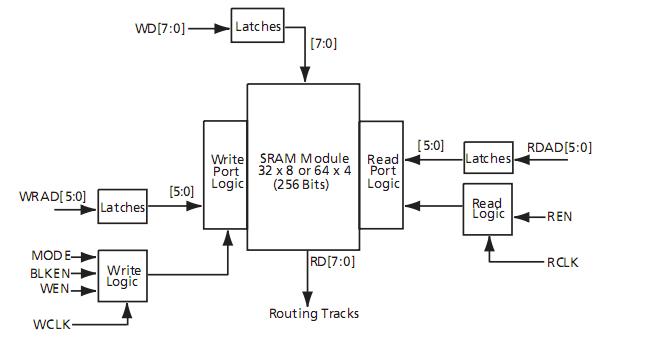

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 A40MX04-FPL68 |
|
IC FPGA MX SGL CHIP 6K 68-PLCC |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
A40MX02 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
A40MX02-1PL44 |
|
IC FPGA MX SGL CHIP 3K 44-PLCC |
Data Sheet |
|
|
||||||
|
A40MX02-1PL44I |
|
IC FPGA MX SGL CHIP 3K 44-PLCC |
Data Sheet |
|
|
||||||
|
A40MX02-1PL44M |
|
IC FPGA MX SGL CHIP 3K 44-PLCC |
Data Sheet |
|
|
||||||
|
A40MX02-1PL68 |
|
IC FPGA MX SGL CHIP 3K 68-PLCC |
Data Sheet |
|
|
||||||
|
A40MX02-1PL68I |
|
IC FPGA MX SGL CHIP 3K 68-PLCC |
Data Sheet |
|
|
||||||
