Product Summary
The XTR101AP is a microcircuit, 4-20mA, two-wire transmitter containing a high accuracy instrumentation amplifier (IA), a voltage-controlled output current source, and dual-matched precision current reference. This combination is ideally suited for remote signal conditioning of a wide variety of transducers such as thermocouples, RTDs, thermistors, and strain gauge bridges. State-of-the-art design and laser-trimming, wide temperature range operation and small size make it very suitable for industrial process control applications. In addition, the optional external transistor allows even higher precision. Applications include Pressure Transmitters, Temperature Transmitters and Millivolt Transmitters and so on.
Parametrics
XTR101AP absolute maximum ratings: (1)Power Supply: 40V; (2)Storage Temperature Range, Ceramic: -55℃ to +165℃; (3)Storage Temperature Range, Plastic: -5℃ to +125℃; (4)Junction Temperature: +165℃.
Features
XTR101AP features: (1)Low Offset Voltage; (2)Low Voltage Drift; (3)Low Nonlinearity; (4)Power and Signal on One Wire Pair; (5)Current Mode Signal Transmission; (6)High Noise Immunity.

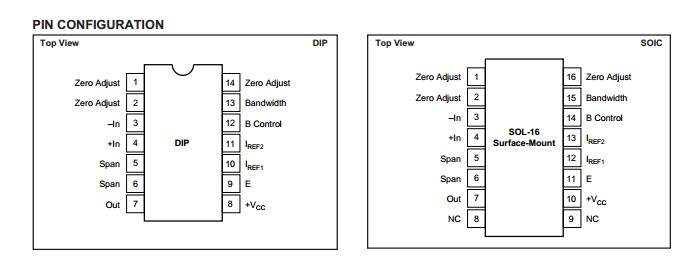

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XTR101AP |
Texas Instruments |
Current Sense Amplifiers Prec Lo-Drift 4-20mA 2-Wire Trnsmtr |
Data Sheet |
|
|
||||||||||||
|
XTR101APG4 |
Texas Instruments |
Current Sense Amplifiers Prec Lo-Drift 4-20mA 2-Wire Trnsmtr |
Data Sheet |
|
|
||||||||||||
