Product Summary

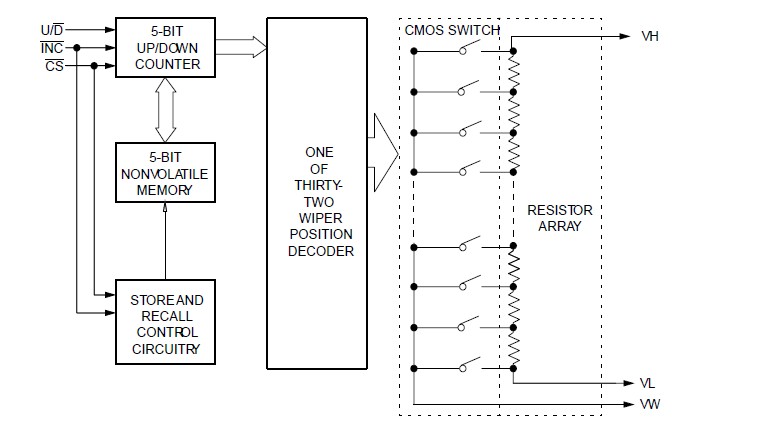

The X9315WS is a solid state micropower nonvolatile potentiometer and is ideal for digitally controlled resistance trimming. The X9315WS is a resistor array composed of 31 resistive elements. Between each element and at either end are tap points accessible to the wiper element. All Xicor nonvolatile digital potentiometers are designed and tested for applications requiring extended endurance and data retention.

Parametrics

X9315WS absolute maximum ratings: (1)Temperature under Bias : –65 °C to +135 °C; (2)Storage Temperature: –65 °C to +150 °C; (3)Voltage on CS, INC, U/DVH, VL and VCC with Respect to VSS: –1V to +7V; (4)DV = |VH–VL| : 5V; (5)Lead Temperature (Soldering 10 seconds): 300 °C; (6)Wiper Current : ±1mA; (7)Power Rating at 25 °C: 10mW.

Features

X9315WS features: (1)VCC = 2.7V to 5.5V, Single Supply; (2)Active Current, 50 mA (Increment)max; (3)Active Current, 400 mA (Store)Max; (4)Standby Current, 1 mA Max; (5)Low Noise; (6)31 Resistive Elements; (7)Temperature Compensated; (8)± 20% End to End Resistance Range; (9)VSS to VCC Range; (10)Wiper Positioned via Three-Wire Interface; (11)Similar to TTL Up/Down Counter; (12)Wiper Position Stored in Nonvolatile Memory and Recalled on Power-Up; (13)100 Year Wiper Position Data Retention; (14)8-Lead SOIC; (15)8-Lead MSOP; (16)8-Pin DIP.
