Product Summary
The X25045PI is a Programmable Watchdog Supervisory E2PROM. The X25045PIcombines three popular functions, Watchdog Timer, Voltage Supervision, and E2PROM in a single package. This combination lowers the system cost and reduces the board space requirements.The X25045PI utilizes proprietary Direct Write cell, providing a minimum endurance of 100,000 cycles.
Parametrics
X25045PI absolute maximum ratings: (1)Temperature under Bias: -65℃ to +135℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin with Respect to VSS: -1.0V to +7V; (4)D.C. Output Current: 5mA.
Features
X25045PI features: (1)Programmable Watchdog Timer; (2)Low VCC Detection; (3)Reset Signal Valid to VCC = 1V; (4)1MHz Clock Rate; (5)2.7V To 5.5V Power Supply; (6)Built-in Inadvertent Write Protection; (7)High Reliability.

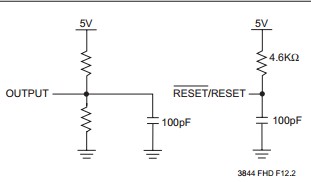

Diagrams
